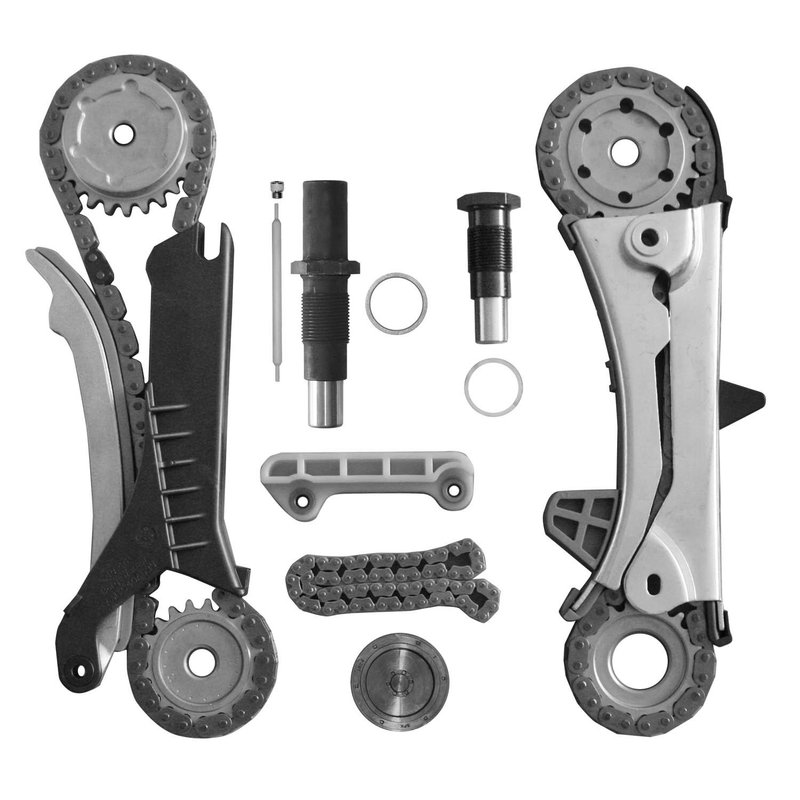

INA ZC-76136 Engine Timing Set

INA Timing Chain Kit for Ford V6 Engines

INA ZC-76136 is a premium engine timing set built for Ford, Mercury, Mazda, and Land Rover applications that use a timing chain system. This kit brings together the core timing components needed for a complete repair, including chains, tensioners, and guides.

For Ford Explorer, Ranger, Mustang, and related V6 applications, INA ZC-76136 helps restore proper valve timing with the parts required for a thorough timing service.

Key Features

• Premium-grade engine timing set
• Includes timing chains, chain guides, and tensioner
• Built for complete timing system service
• Chain guides included: Yes
• Tensioner included: Yes
• Gaskets included: No
• Drive sprocket included: No
• Part number: ZC-76136

Detailed Description

INA ZC-76136 is an engine timing set from INA, a Schaeffler brand known for timing system components. This kit is organized to support a proper timing chain repair by supplying the primary wear items in one package. In applications where the original setup requires additional components, the kit is designed around the chain, tensioner, and guide service points most commonly replaced during timing work. The part number ZC-76136 also cross-references INA Global Number 559 1416 100 for the same application.

Compatible With 1997-2010 Ford Explorer, 2007-2010 Ford Explorer Sport Trac, 2001-2005 Ford Explorer Sport Trac, 2005-2010 Ford Mustang, 2001-2010 Ford Ranger, 1998-2010 Mercury Mountaineer, 2001-2009 Mazda B4000, 2005-2007 Land Rover LR3, and 2001-2003 Ford Explorer Sport.

Common Problems This Kit Helps Address

• Excess timing chain noise from worn guides or tensioner components
• Timing chain stretch that affects camshaft and crankshaft synchronization
• Rattle on startup caused by worn chain tensioning parts
• Service needs during high-mileage timing system repair
• Restoration of proper valve timing after timing component wear

Installation Notes and Tips

Inspect the full timing system before installation and replace worn related components as needed. Verify engine code, timing cover configuration, and application details against the vehicle before ordering. Because this kit does not include gaskets or drive sprockets, confirm whether those parts are required for your repair plan. Use correct timing procedures and follow manufacturer service specifications during installation.

Quality Assurance

INA timing chain kits are assembled to provide the essential components needed for a complete timing service. The included chain additive is formulated for break-in protection and reduced initial wear in applicable kits, supporting a clean start to the repair. Part number ZC-76136 is built for the listed Ford, Mercury, Mazda, and Land Rover applications.
