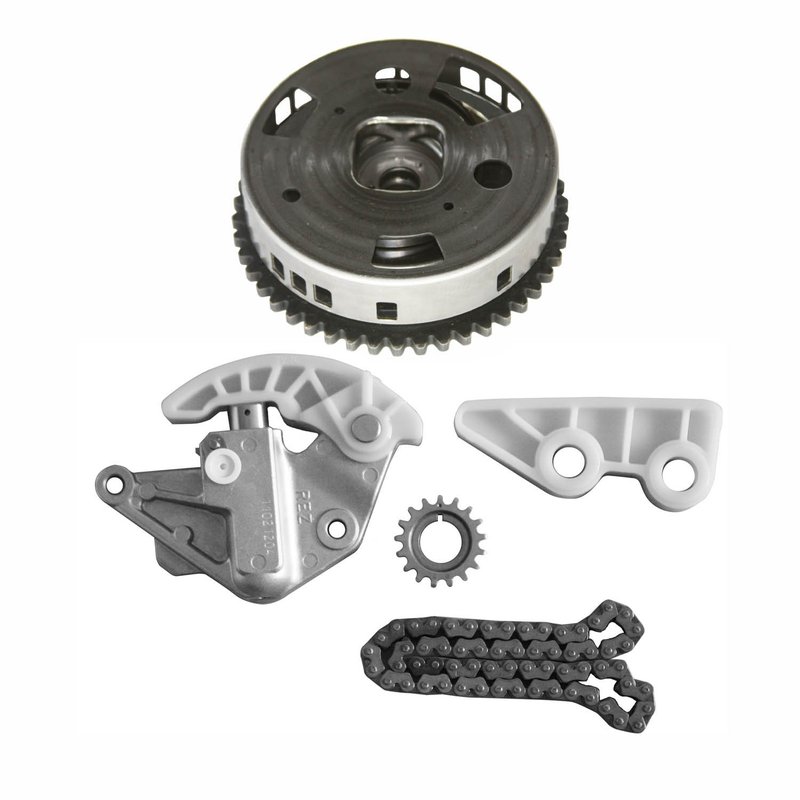

INA ZC-76223V Engine Timing Set

INA Timing Chain Kit for Chrysler, Dodge, Jeep, and Ram

INA ZC-76223V is a premium engine timing set built for select Chrysler, Dodge, Jeep, and Ram applications. It brings together the core timing components needed for a proper timing chain service, including chain guides and a tensioner, with application-specific sprockets where listed in fitment notes.

Key Features

• Premium-grade INA engine timing set
• Includes timing chain, guides, and tensioner
• Application-specific cam sprocket and crank sprocket included on listed late-model fitments
• Engineered for timing chain service on V8 applications across Chrysler, Dodge, Jeep, and Ram platforms
• INA part number ZC-76223V for catalog and cross-reference use
• Cross-references Schaeffler global number 5591329100 for the same application

Detailed Description

This INA timing chain kit is built to restore correct valve timing in engines that rely on a chain-driven timing system. The kit is centered around the essential wear items in the timing drive, helping address chain stretch, guide wear, and tensioner fatigue during a timing service. For select 2020-2023 Dodge Challenger and Charger, 2019-2023 Ram 2500 and 3500, 2020-2022 Dodge Durango, 2022 Jeep Grand Wagoneer, and 2020-2021 Jeep Grand Cherokee applications, the kit notes inclusion of a cam sprocket and crank sprocket as part of the repair package. INA ZC-76223V is also listed across earlier Chrysler 300, Dodge Challenger, Dodge Charger, Dodge Durango, Jeep Grand Cherokee, Ram 1500, Ram 2500, Ram 3500, Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, Jeep Commander, and Chrysler Aspen coverage where the global number 559 1329 100 applies.

What It Helps Address

• Timing chain noise from worn chain components
• Rattle or slack caused by a weak tensioner
• Guide wear that can affect chain tracking
• Incorrect cam-to-crank synchronization
• Timing service needs on high-mileage V8 engines

Installation Notes and Tips

Verify engine code, model year, and timing system configuration before ordering. This kit is intended for direct timing service on the listed applications, and fitment notes should be matched carefully to the vehicle. Follow factory timing marks, torque specifications, and service procedures during installation. If the engine has suffered internal damage from timing failure, inspect related components before reassembly.

Quality Assurance

INA timing chain kits are assembled to include the essential timing components needed for a complete repair, with chain, tensioner, and guides as standard kit content. In select applications, the kit also includes gears and sprockets to match the vehicle-specific timing drive requirements. INA ZC-76223V is a premium timing set backed by Schaeffler engineering and cataloged for the applications listed above.
