INA ZC-9-0398SE Engine Timing Set

INA Timing Chain Kit for Ford and Mazda

INA ZC-9-0398SE is a premium engine timing set built for Ford Ranger, Ford Explorer, Ford Explorer Sport Trac, Ford Explorer Sport, Mercury Mountaineer, and Mazda B4000 applications. This timing chain kit includes the core wear components needed for a complete timing service, with chain guides and a tensioner included for a more complete repair.

For 2001-2011 Ford Ranger timing chain kit searches and 1997-2010 Ford Explorer timing set replacements, this INA kit provides the essential parts commonly replaced during timing service. Part number ZC-9-0398SE is also referenced under INA global number 559 1534 100.

• Premium-grade engine timing set
• Chain guides included
• Tensioner included
• Designed for timing chain service on select Ford, Mercury, and Mazda engines
• Cross-reference part number: 5591534100

Detailed Product Overview

INA timing chain kits are assembled to cover the main components involved in timing chain replacement. This kit includes the chains, tensioners, and guides required for the repair, and in some applications INA kits may also include gears and sprockets. For this part number, the listed contents confirm chain guides and a tensioner, making it a practical choice for engine timing work on compatible Ford Ranger, Ford Explorer, Ford Explorer Sport Trac, Mercury Mountaineer, and Mazda B4000 vehicles. The part number ZC-9-0398SE helps simplify ordering and cross-checking during service planning.

Common Problems This Kit Can Address

• Timing chain noise at startup or during acceleration
• Excessive chain slack from worn guides or tensioner wear
• Timing-related drivability issues caused by stretched chain components
• Service needs during high-mileage engine maintenance
• Replacement of worn timing components during engine repair

Installation Notes and Tips

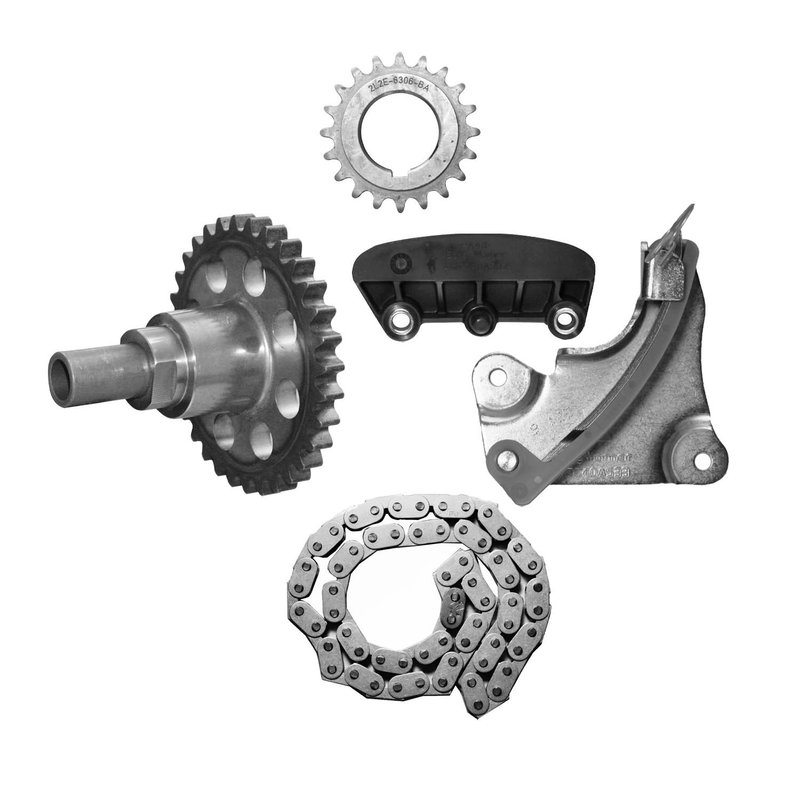

Confirm engine code, model year, and timing system configuration before installation. Because timing service requires precise cam and crank alignment, follow the factory service procedure and inspect related components for wear before assembly. For Mazda B4000 timing chain kit applications, the listed notes indicate contents that include 1 chain, 1 crank sprocket, 1 guide, 1 jackshaft sprocket, and 1 tensioner. Verify all mating surfaces and timing marks before starting the engine.

Quality Assurance

INA lists this as a premium timing set and states that its timing chain kits are built with the essential components needed to complete the repair correctly the first time. The manufacturer also notes that certain kits include a specially formulated chain additive developed for Schaeffler by Liqui Moly to reduce friction during break-in and lower run-in wear.

Compatible With 2001-2011 Ford Ranger, 1997-2010 Ford Explorer, 2007-2010 Ford Explorer Sport Trac, 2001-2005 Ford Explorer Sport Trac, 1998-2010 Mercury Mountaineer, 2001-2009 Mazda B4000, and 2001-2003 Ford Explorer Sport.
