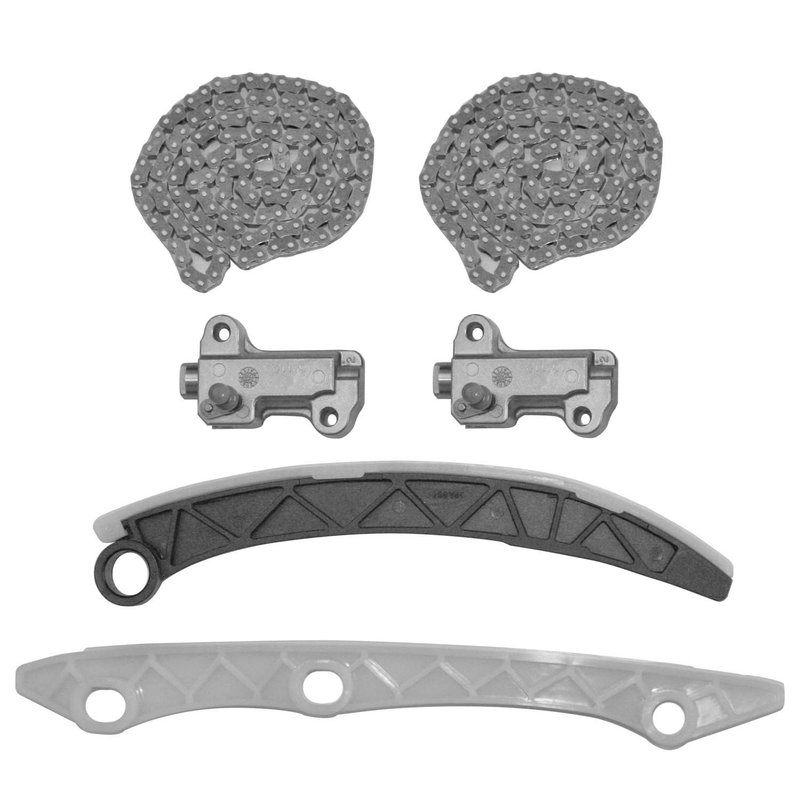

INA ZC-9-0743SX Engine Timing Set

INA Timing Chain Kit for Honda and Acura

The INA ZC-9-0743SX engine timing set is built for timing chain service on select Honda and Acura applications. It includes the essential chain drive components needed for a complete repair, with chain guides and a tensioner included for a more complete valve train service.

Fits 2006-2015 Honda Civic, N/A; Fits 2013-2015 Acura ILX, N/A; Fits 2016-2019 Honda HR-V, N/A; Fits 2020-2022 Honda HR-V, N/A.

Key Features

• Engine timing set from INA, part number ZC-9-0743SX
• Premium grade timing chain kit for valve train service
• Chain guides included
• Tensioner included
• Includes the core components needed for timing chain replacement
• Cross-reference: 5591605100

Detailed Description

INA timing chain kits are assembled to cover the main wear items involved in timing chain repair. This kit includes the chain, guide, tensioner arm, and tensioner for the listed Honda Civic, Acura ILX, and Honda HR-V applications. In applications where chain break-in protection is needed, INA notes that its kits may include a specially formulated chain additive developed with Liqui Moly to reduce friction during the initial run-in period and lower wear during break-in.

The ZC-9-0743SX timing set is a direct-fit service part for 2006-2015 Honda Civic, 2013-2015 Acura ILX, and 2016-2022 Honda HR-V applications listed below. Use this part number when searching for an INA timing chain kit for Honda Civic, Acura ILX, or Honda HR-V engine timing repair.

What It Helps Repair

• Timing chain noise or chain rattle
• Worn chain guides
• Weak or failing chain tensioner
• Timing chain stretch-related service issues
• Valve timing irregularities caused by worn timing components

Installation Notes and Tips

Replace the timing chain set as a complete assembly when wear is present in the chain, guides, or tensioner. Verify engine code and application details before installation, and follow factory timing procedures closely to maintain correct camshaft and crankshaft synchronization. The kit includes chain guides and a tensioner; gaskets and drive sprockets are not included.

Quality Assurance

INA is a Schaeffler brand known for timing system components used in engine repair. This premium timing chain kit is engineered to provide the essential parts needed for a proper timing service on the listed Honda and Acura applications.
