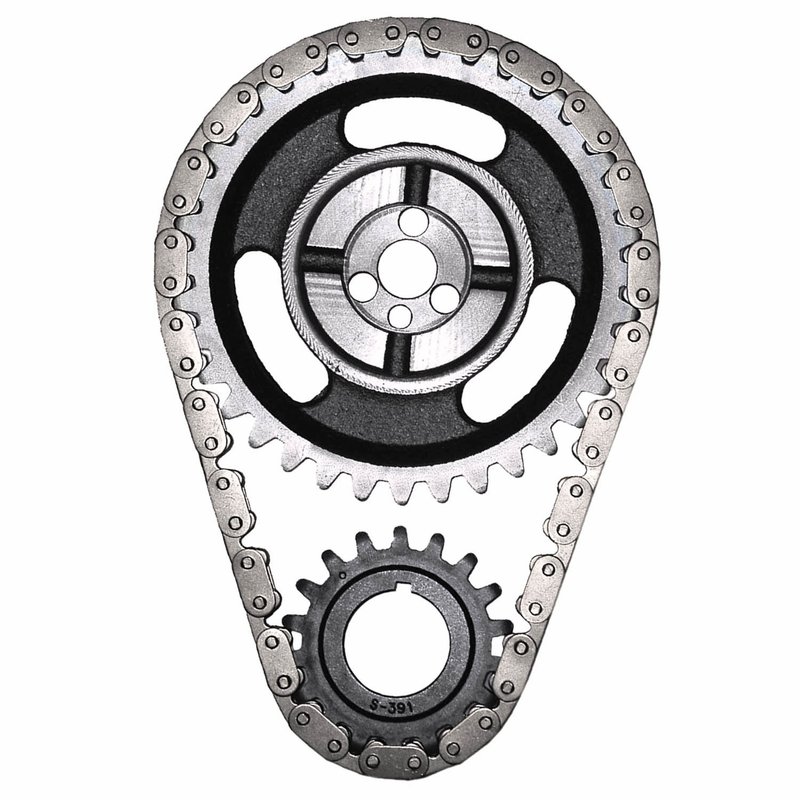

INA ZC-C-3064K Engine Timing Set

INA Timing Chain Kit ZC-C-3064K

INA ZC-C-3064K is a premium engine timing set for select Chevrolet, Pontiac, and Oldsmobile applications. It is built as a timing chain kit with the essential chain components needed for a proper timing repair, and it also includes a high-performance chain additive formulated for reduced friction during break-in.

Key Features

• Premium-grade INA engine timing set
• Includes the necessary chains for the repair
• Includes a specially formulated chain additive from Liqui Moly for Schaeffler
• Chain additive is engineered to reduce break-in friction and lower run-in wear by up to 20%
• Cross-reference: 5591144100
• Part number: ZC-C-3064K

Detailed Description

INA ZC-C-3064K is an engine timing set designed for timing chain service on select V8 applications, including 1987-1992 Chevrolet Camaro, 1987-1992 Pontiac Firebird, 1987-1991 Chevrolet Corvette, 1989-1991 Chevrolet Caprice, 1991 Chevrolet Commercial Chassis, and 1991-1992 Oldsmobile Custom Cruiser. This kit is built around the chain assembly and the break-in additive, giving technicians the core components needed for a timing repair on these Chevrolet Camaro and Pontiac Firebird applications, as well as related Chevrolet and Oldsmobile models. The part number ZC-C-3064K is also listed under INA global number 559 1144 100.

What This Part Helps Address

• Timing chain stretch or wear
• Excessive chain noise from a worn timing set
• Timing drift that can affect engine performance
• Break-in friction after timing service
• Run-in wear during initial operation after repair

Installation Notes and Tips

Verify engine code, timing cover configuration, and OE-style application details before installation. This timing set does not list chain guides, tensioner, gaskets, or drive sprocket as included, so confirm all required related components are on hand before beginning service. Follow factory timing marks and service procedures carefully to maintain correct cam-to-crank synchronization on compatible Chevrolet Camaro, Pontiac Firebird, and Corvette applications.

Quality Assurance

INA timing chain kits are assembled to provide the essential components needed for a complete timing repair, and the included additive is formulated to reduce friction during the break-in period. The premium grade construction supports accurate, service-ready replacement for the listed applications.
