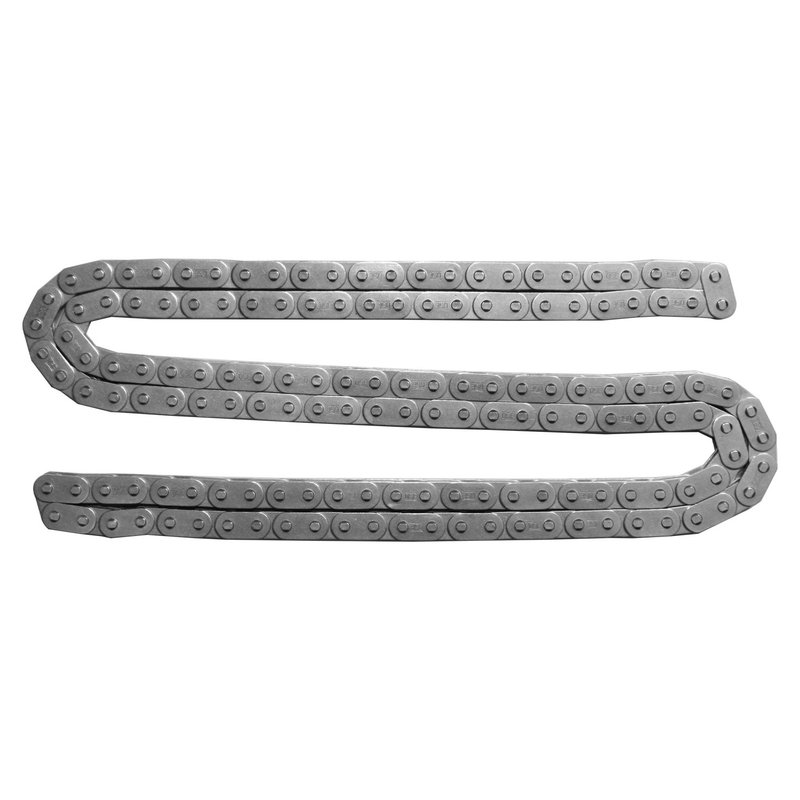

INA ZC-C1113 Engine Timing Chain

INA ZC-C1113 Timing Chain for Mazda Engines

The INA ZC-C1113 engine timing chain is a roller chain built for Mazda valve train applications that require precise camshaft timing and durable chain construction. It is engineered to meet or exceed OE quality and performance expectations, with heat-treated plates and pins for consistent hardness and long service life.

Key Features

• Roller chain timing chain design
• 150-link chain quantity
• Heat-treated plates and pins for durability
• OE-quality replacement for Mazda timing chain service
• INA part number ZC-C1113

Product Details

INA ZC-C1113 is an engine timing chain for Mazda 3, Mazda 6, CX-5, and CX-9 applications listed below. This timing chain is built for valve train synchronization, helping maintain accurate camshaft and crankshaft relationship in engines that rely on chain-driven timing. This part cross-references INA Global Number 553 0643 100 for the same application.

• Fits 2017-2018 Mazda 3, N/A
• Fits 2014-2018 Mazda CX-5, N/A
• Fits 2018 Mazda CX-9, N/A
• Fits 2016 Mazda CX-9, N/A
• Fits 2017 Mazda 6, N/A
• Fits 2017 Mazda CX-9, N/A
• Fits 2014-2016 Mazda 3, N/A
• Fits 2014-2016 Mazda 6, N/A

Common Uses

• Replacing a stretched or worn timing chain
• Restoring proper engine timing on Mazda 3, Mazda 6, CX-5, and CX-9 models
• Addressing chain noise from wear in the valve train
• Correcting timing-related drivability concerns caused by chain elongation
• Servicing chain-driven camshaft timing components

Installation Notes and Tips

Confirm engine application by year, model, and timing system before installation. Inspect related timing components during service, including guides, tensioners, and sprockets, since chain wear often occurs alongside other valve train wear. Verify chain orientation and timing marks during assembly to maintain correct engine timing.

Quality Assurance

INA timing chains are manufactured to OE-level standards with heat-treated chain plates and pins for controlled hardness and durability. The ZC-C1113 is built for dependable timing performance in Mazda engine applications.
