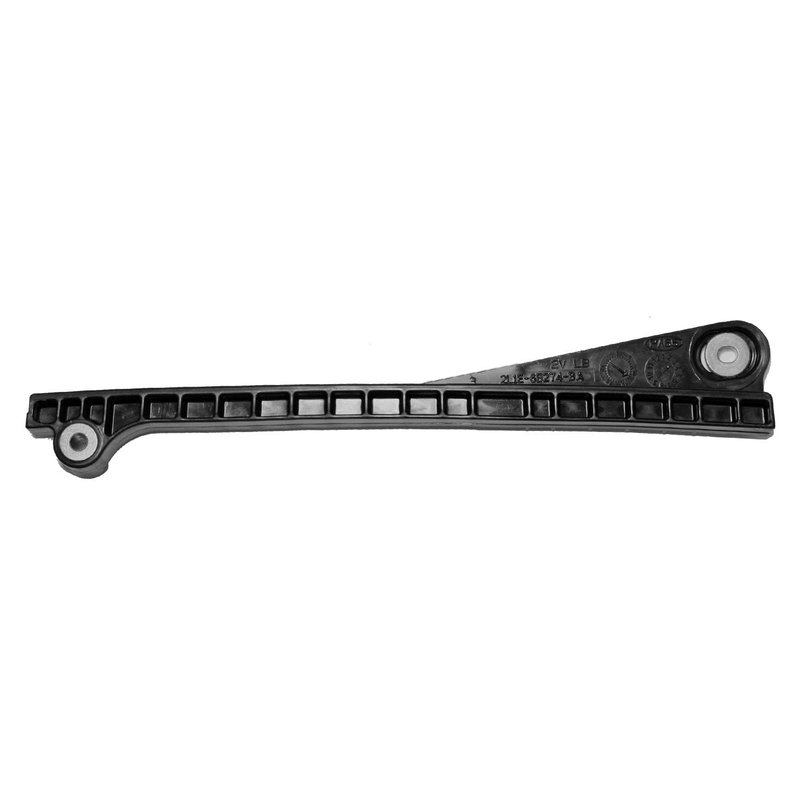

INA ZG-9-5430 Engine Timing Chain Guide - Left

INA Timing Chain Guide for Ford and Lincoln

INA ZG-9-5430 is an engine timing chain guide for select Ford and Lincoln applications with left-side fitment. It is built to meet OE-level performance expectations and uses plastic material formulated to match OEM PA66 and PA46 grade hardness requirements.

Key Features

• Engine timing chain guide for the valve train system
• Left-side position for listed Ford and Lincoln vehicles
• Plastic construction matched to OEM PA66 and PA46 grade material and hardness
• INA part number ZG-9-5430 for catalog lookup and ordering
• Cross-reference: 5520044100

Detailed Description

This INA timing chain guide is designed for Ford F-150, Ford Expedition, Ford E-Series vans, Ford Super Duty trucks, and Lincoln Navigator applications that require left-side timing chain guide service. It supports proper chain routing in the engine timing system and is listed for a wide range of 1997-2018 model years, including applications with cam sprockets integrated with the camshaft where noted. Use INA ZG-9-5430 when replacing a worn or damaged guide in the specified engine configurations.

What It Helps Address

• Timing chain noise from a worn guide surface
• Chain misalignment in the valve train
• Guide wear from age, heat, or mileage
• Rattle or irregular chain movement during engine operation
• Service replacement for left-side timing chain guide applications

Installation Notes and Tips

• Verify engine configuration and left-side position before installation.
• Check the timing chain, sprockets, and related valve train components for wear during service.
• Confirm fitment carefully on Ford E-350 Super Duty, Ford F-150, Ford Expedition, and Lincoln Navigator applications, as notes vary by year and engine setup.
• Follow factory timing procedures and torque specifications during reassembly.

Quality Assurance

INA states this timing chain guide is engineered to meet or exceed OE quality and performance expectations. The plastic material is specified to match OEM PA66 and PA46 grade hardness requirements for the listed applications.
