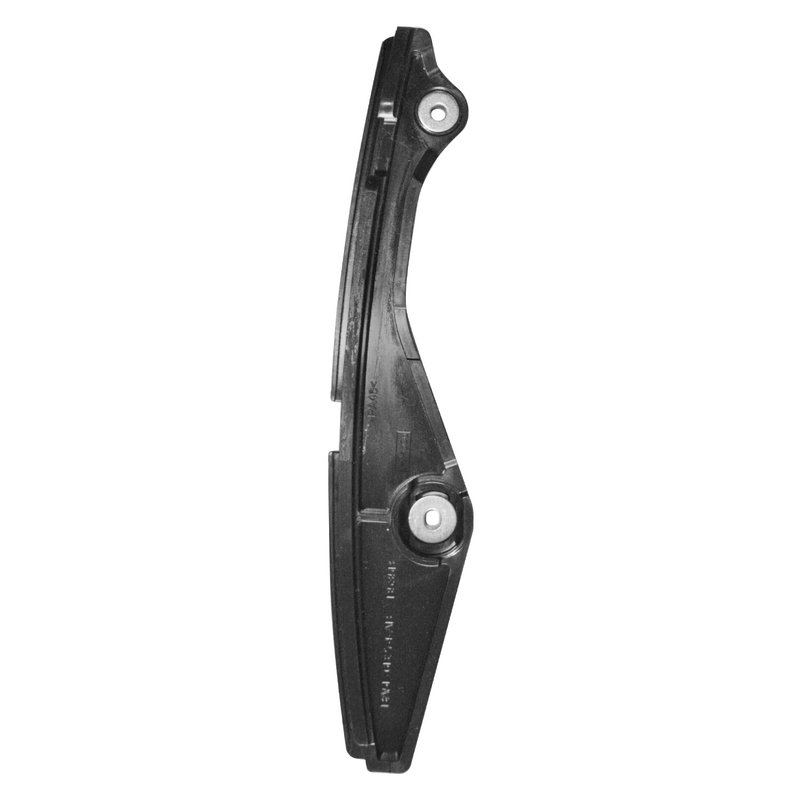

INA ZG-9-5695 Engine Timing Chain Guide - Left

Engine Timing Chain Guide for Ford, Lincoln, and Mazda

INA ZG-9-5695 is an engine timing chain guide built for left-side applications in select Ford, Lincoln, and Mazda vehicles. It is made to match OE material and hardness requirements, with plastic formulated to OEM PA66 and PA46 grade standards.

• Engine timing chain guide for the left side
• OE-style material specification for consistent chain guidance
• Plastic construction matched to OEM PA66 and PA46 grade requirements
• Direct-fit application coverage for select Ford, Lincoln, and Mazda models
• Cross-reference part number: 5520452100

Detailed Application Coverage

This INA timing chain guide, part number ZG-9-5695, is used in timing system service where the chain needs stable routing and controlled movement. It fits 2013-2019 Ford Explorer, left; 2011-2019 Ford Flex, left; 2011-2018 Ford Taurus, left; 2011-2016 Lincoln MKS, left; 2011-2016 Lincoln MKT, left; 2011-2015 Mazda CX-9, left; 2011-2012 Ford Fusion, left; and 2011-2012 Lincoln MKZ, left. The Mazda CX-9 listing is for the arm only. This part number, ZG-9-5695, also cross-references INA Global Number 552 0452 100 for the same application.

What This Part Helps Address

• Timing chain noise from worn guide surfaces
• Chain misalignment caused by damaged guide material
• Excessive chain movement in the valve train
• Service replacement for cracked or deteriorated guide components
• Left-side timing chain guide wear in Ford, Lincoln, and Mazda engines

Installation Notes and Tips

Verify engine code, left-side position, and model year before installation. Inspect the timing chain, tensioner, and related valve train components during service, since guide wear often occurs alongside other timing system wear. Confirm the Mazda CX-9 application note for arm-only coverage before ordering. Professional installation is recommended for timing system repairs.

Quality Assurance

INA timing chain guides are engineered to meet or exceed OE quality and performance expectations. The guide material is produced to OEM PA66 and PA46 grade standards for hardness and durability consistency.
