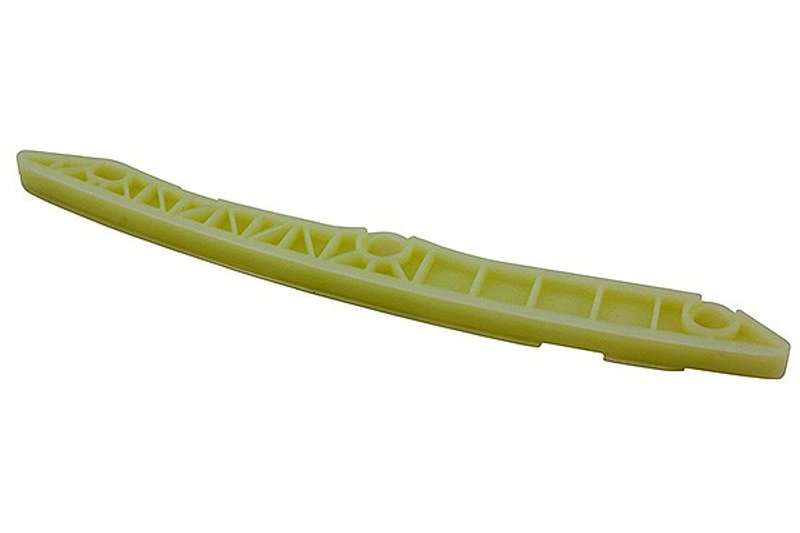

INA ZG0247 Engine Timing Chain Guide - Right Upper

Engine Timing Chain Guide for Mercedes-Benz V12

INA ZG0247 is a right upper engine timing chain guide for select Mercedes-Benz V12 applications. It is built to OE-quality standards and uses plastic material matched to OEM PA66 and PA46 grade requirements for hardness and durability.

Key Features

• Engine timing chain guide for the right upper position
• OE-quality replacement from INA
• Plastic construction matched to OEM PA66 and PA46 grade material and hardness
• Direct-fit service part for select Mercedes-Benz S65 AMG, SL65 AMG, S600, CL600, G65 AMG, and Maybach models
• INA part number ZG0247

Detailed Description

INA ZG0247 is an engine timing chain guide designed for the right upper location in the valve train system. It is used on select Mercedes-Benz models including the S65 AMG, SL65 AMG, S600, CL600, G65 AMG, and Maybach S600 and S650. This timing chain guide helps maintain proper chain routing in high-output V12 engines, where guide wear can affect timing system operation. The part number ZG0247 also cross-references INA Global Number 552 0247 100 for the same application.

Vehicle Fitment

• Fits 2018-2019 Mercedes-Benz Maybach S650, right upper.
• Fits 2015-2019 Mercedes-Benz S65 AMG, right upper.
• Fits 2006-2013 Mercedes-Benz S65 AMG, right upper.
• Fits 2016-2018 Mercedes-Benz G65 AMG, right upper.
• Fits 2013-2018 Mercedes-Benz SL65 AMG, right upper.
• Fits 2011 Mercedes-Benz SL65 AMG, right upper.
• Fits 2005-2009 Mercedes-Benz SL65 AMG, right upper.
• Fits 2016-2017 Mercedes-Benz Maybach S600, right upper.
• Fits 2015-2017 Mercedes-Benz S600, right upper.
• Fits 2001-2013 Mercedes-Benz S600, right upper.
• Fits 2001-2014 Mercedes-Benz CL600, right upper.
• Fits 2008-2014 Mercedes-Benz CL65 AMG, right upper.
• Fits 2005-2006 Mercedes-Benz CL65 AMG, right upper.
• Fits 2004-2009 Mercedes-Benz SL600, right upper.

What This Part Helps Address

• Timing chain guide wear on the right upper side
• Chain noise caused by a worn or damaged guide
• Improper chain routing in the timing system
• Service replacement during timing component repair
• Restoration of correct guide surface condition in V12 engines

Installation Notes and Tips

Verify engine code, model year, and right upper position before ordering. Timing system service should be performed with the engine properly timed and inspected for related wear on the chain, tensioner, and adjacent guides. For Mercedes-Benz S65 AMG, SL65 AMG, S600, CL600, G65 AMG, and Maybach applications, confirm the existing guide matches INA ZG0247 or INA Global Number 552 0247 100.

Quality Assurance

INA states this timing chain guide is engineered to meet or exceed OE quality and performance expectations, with plastic material matched to OEM PA66 and PA46 grade requirements.
