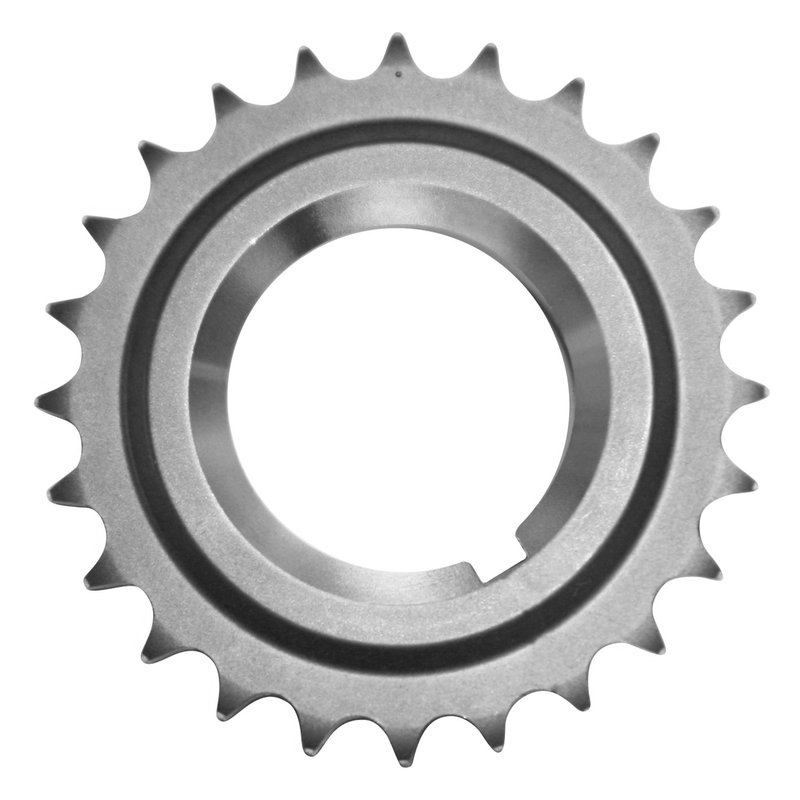

INA ZS-S1396 Engine Oil Pump Sprocket
OE Quality 60-Day Returns
INA

INA ZS-S1396 Engine Oil Pump Sprocket

Brand INA ZS-S1396
Fits Mazda · 14 vehicles

OE quality. Designed to meet or exceed original equipment performance.

Heat-treated construction. Made to exact hardness specifications for dependable operation.

Powdered metal, steel, or cast iron. Built from durable materials for timing gear and sprocket applications.

Cross-references 5540324100 for the same application. See all 1.

$39.77Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $39.77
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Oil Pump Sprocket options

INA Engine Oil Pump Sprocket ZS-S1396

INA ZS-S1396 is an engine oil pump sprocket built for OE-level timing gear performance. It is made from high-quality powdered metal, steel, or cast iron and heat treated to exact hardness specifications for consistent operation in the engine timing system.

Key Features

  • Engine oil pump sprocket for timing system service
  • Manufactured to meet or exceed OE quality and performance targets
  • Constructed from powdered metal, steel, or cast iron, depending on application design
  • Heat treated to precise hardness specifications for durability
  • Cross-reference: INA Global Number 554 0324 100

Application Details

Compatible with 2012-2018 Mazda 3 Sport, 2016-2018 Mazda CX-3, and 2013-2016 Mazda CX-5. This INA engine oil pump sprocket, part number ZS-S1396, is used in the oil pump drive portion of the engine timing assembly and is listed for the Mazda 3 Sport, Mazda CX-3, and Mazda CX-5 applications shown.

Common Issues This Part May Address

  • Worn or damaged oil pump sprocket teeth
  • Timing system noise related to sprocket wear
  • Oil pump drive irregularities from a fatigued sprocket
  • Service replacement during engine timing component repair

Installation Notes

Verify engine code and OE reference before installation. Inspect related timing components, chain or belt drive parts, and oil pump drive surfaces for wear before reassembly. Proper alignment and torque procedures are important during installation of the ZS-S1396 sprocket.

Quality Assurance

INA timing gears and sprockets are engineered to OE-quality standards using controlled materials and heat treatment for consistent hardness and fit. Part number ZS-S1396 is backed by INA manufacturing standards for timing system service.

Related reading

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2018Mazda3 Sport2.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2018MazdaCX-32.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2017Mazda3 Sport2.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2017MazdaCX-32.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2016Mazda3 Sport2.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2016MazdaCX-32.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2016MazdaCX-52.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2015Mazda3 Sport2.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2015MazdaCX-52.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2014Mazda3 Sport2.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2014MazdaCX-52.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2013Mazda3 Sport2.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2013MazdaCX-52.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
2012Mazda3 Sport2.0LL4INA Global Number 554 0324 100; Oil Pump Spkt.
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
5540324100
