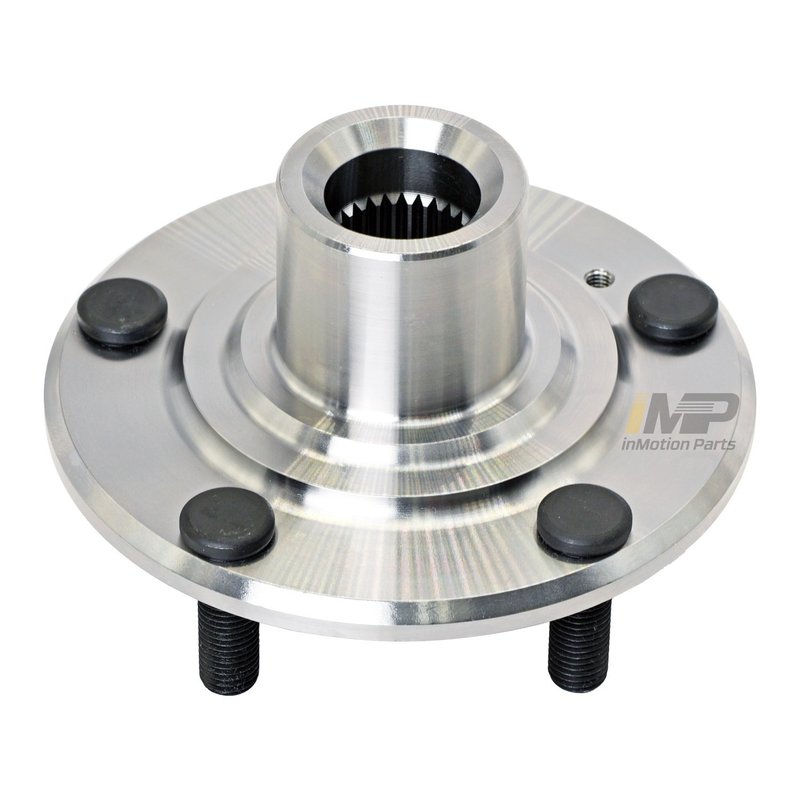

InMotion SPK44600-TBC-A00 Wheel Hub - Front
| Brand | InMotion SPK44600-TBC-A00 |
|---|---|
| Position | Front |
| Spline Quantity | 28 |
| Hub Pilot Diameter | 2.52 |
| Hub Pilot Diameter | 64.099999999999994 |
| Bearing Type | Spindle |
| Flange Offset | 0.63 |
| Flange Offset | 16 |
| Flange Diameter | 139.5 |
| Flange Diameter | 5.49 |
| Abs Sensor Included | No |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.47 |
| Flange Bolt Size (mm) | 12 |
| Flange Bolt Thread Size | M12-1.5 |
| Hub Centerbore Diameter (in) | 4.5 |
| Hub Centerbore Diameter (mm) | 114.3 |
| New Or Remanufactured | New |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 5 |
| Number Of Mounting Bolts To Knuckle | 0 |
| Total Hub Diameter (in) | 5.49 |
| Total Hub Diameter (mm) | 139.5 |
| Total Hub Height (in) | 3.39 |
| Total Hub Height (mm) | 86 |
| Wiring Harness Included | No |
| Fits | Acura and Honda · 20 vehicles |
OE-based fitment. Engineered from OE data and measurements for accurate replacement dimensions.
Driven hub design. Built with 28 splines and a spindle bearing type for the specified application.
New replacement part. Manufactured under strict quality-control criteria for service use.
Cross-references 44600-TBC-A00 and 633037 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Wheel Hub Replacement Overview
This InMotion wheel hub is engineered for direct replacement applications that call for OE-based fitment and precise dimensions. It is a new, driven hub assembly built for front service on select Acura and Honda models, including the Civic, Integra, ILX, and Insight.
Key Features
- OE-data engineering for accurate fitment and consistent installation dimensions.
- Driven hub design with 28 splines for the specified application.
- Spindle bearing type with a 5-bolt flange pattern.
- No ABS sensor included and no wiring harness included.
- New construction for replacement service.
Detailed Description
InMotion part number SPK44600-TBC-A00 is a front wheel hub designed around OE measurements for the listed Acura and Honda applications. The hub uses a 64.1 mm pilot diameter, 114.3 mm centerbore, 139.5 mm flange diameter, and M12-1.5 flange bolt thread size, supporting accurate alignment with the original mounting points. This part cross-references Monroe Shocks & Struts (e.g., 44600-TBC-A00, 633037) for the same application. It is a practical replacement choice for Acura Integra, Honda Civic, Acura ILX, and Honda Insight service where the original hub has worn or lost proper engagement.
Common Uses
- Restoring proper wheel hub engagement when the original unit is worn.
- Addressing noise or roughness associated with hub and bearing wear.
- Replacing a damaged driven hub assembly on the front axle.
- Correcting fitment issues caused by incorrect hub dimensions.
Installation Notes
Verify spline count, flange dimensions, and bolt thread size before installation. Confirm front-position fitment for the exact Acura or Honda model and year listed. Because no ABS sensor is included, transfer or source any required sensor components separately if your vehicle uses them.
Quality Assurance
Manufactured with strict quality-control criteria and built from OE data and measurements to support accurate fitment, performance, and service life. Part number SPK44600-TBC-A00 is a new replacement hub for the specified applications.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Acura | Integra | — | — | — | Front | — |
| 2023 | Acura | Integra | — | — | — | Front | — |
| 2023 | Honda | Civic | Sedan | 1.5L | L4 | Front | — |
| 2022 | Acura | ILX | — | 2.4L | L4 | Front | — |
| 2022 | Honda | Civic | — | 2.0L | L4 | Front | — |
| 2022 | Honda | Insight | — | 1.5L | L4 | Front | — |
| 2021 | Acura | ILX | — | 2.4L | L4 | Front | — |
| 2021 | Honda | Civic | Sedan | 1.5L | L4 | Front | — |
| 2021 | Honda | Insight | — | 1.5L | L4 | Front | — |
| 2020 | Acura | ILX | — | 2.4L | L4 | Front | — |
| 2020 | Honda | Civic | Sedan | 1.5L | L4 | Front | — |
| 2020 | Honda | Insight | — | 1.5L | L4 | Front | — |
| 2019 | Acura | ILX | — | 2.4L | L4 | Front | — |
| 2019 | Honda | Civic | Coupe | 1.5L | L4 | Front | — |
| 2019 | Honda | Insight | — | 1.5L | L4 | Front | — |
| 2018 | Honda | Civic | Sedan | 1.5L | L4 | Front | — |
| 2017 | Acura | ILX | — | 2.4L | L4 | Front | — |
| 2017 | Honda | Civic | Coupe | 1.5L | L4 | Front | — |
| 2016 | Acura | ILX | — | 2.4L | L4 | Front | — |
| 2016 | Honda | Civic | — | 1.5L | L4 | Front | — |
