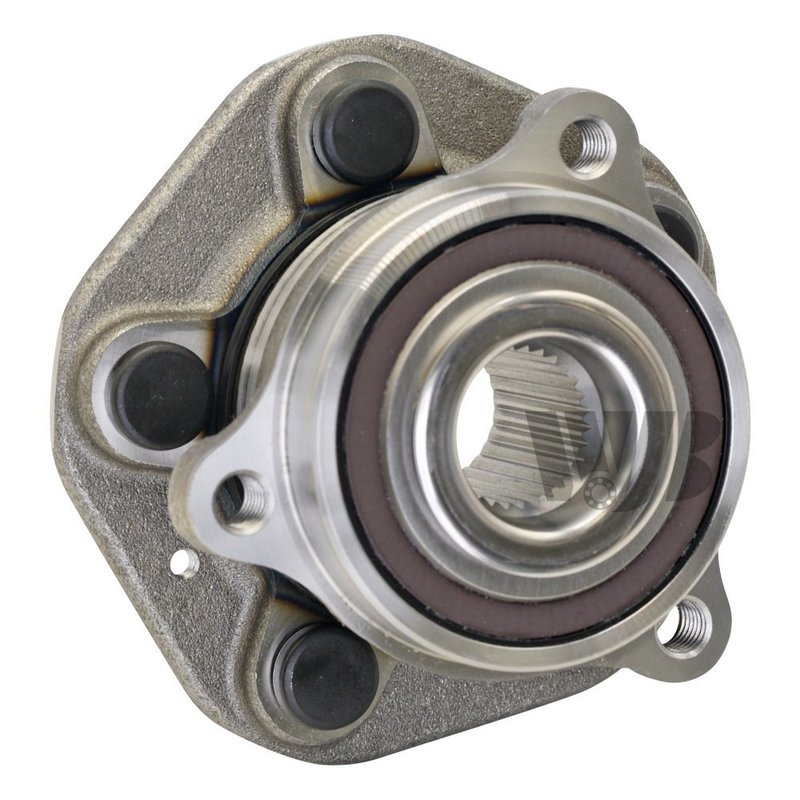

InMotion WA1044123-00-A Wheel Bearing and Hub Assembly - Front or Rear

OE-Style Wheel Hub Assembly for Tesla

InMotion WA1044123-00-A is a new wheel bearing and hub assembly built for direct replacement use on select Tesla driveline applications. It is engineered from OE data and measurements for fit, performance, and service life, with precision manufacturing and strict quality control.

Compatible With Tesla Model 3 rear applications from 2019-2022 and 2024, as well as Tesla Model 3 front applications for 2018 and 2023, plus Tesla Model Y front applications from 2020-2024.

• Part number: WA1044123-00-A
• Driven hub assembly with 30 splines
• Ball bearing design for smooth wheel support
• 5-bolt flange with M14-1.5 flange bolt thread size
• 5 lug bolts with M12-1.75 thread size
• 3-bolt knuckle mounting pattern
• Hub pilot diameter: 70.1 mm (2.76 in)
• Flange diameter: 150 mm (5.91 in)
• Total hub height: 106 mm (4.17 in)
• New, non-ABS hub assembly; wiring harness not included

Fitment Details

• Fits 2019-2022 Tesla 3, rear, Standard Grade
• Fits 2024 Tesla 3, rear, Standard Grade
• Fits 2018 Tesla 3, front, Standard Grade
• Fits 2023 Tesla 3, front, Standard Grade
• Fits 2020-2024 Tesla Y, front, Standard Grade

What This Hub Assembly Helps Address

• Wheel bearing noise such as humming, growling, or rumbling
• Excessive wheel play or looseness at the hub
• Uneven wheel rotation caused by worn bearing components
• Hub wear from high-mileage front or rear service intervals
• Replacement needs after damage to the original hub assembly

Installation Notes

Verify axle spline count, flange dimensions, and mounting pattern before installation. This assembly does not include an ABS sensor or wiring harness, so reuse or separate sensor components as required by the vehicle configuration. Confirm the correct position on Tesla Model 3 and Tesla Model Y applications before ordering or installing.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support proper fitment and consistent performance. The part is supplied new and built as a direct replacement for the original wheel hub assembly.
