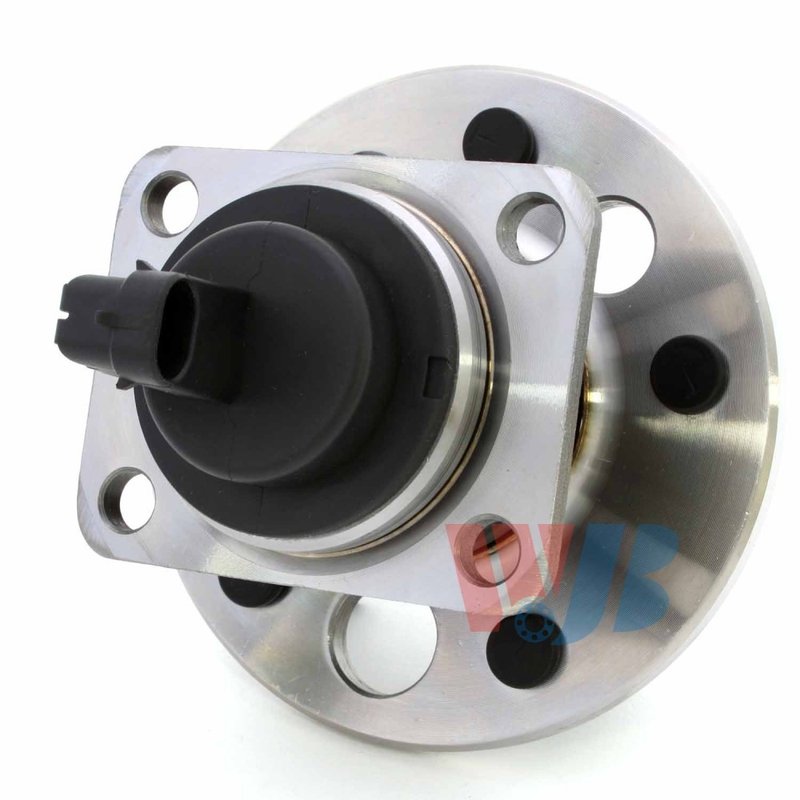

InMotion WA512006 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Cadillac

InMotion WA512006 is a rear wheel bearing and hub assembly built for direct replacement on select Cadillac applications. It is engineered from OE data and measurements for fitment, performance, and service life, with an integrated ABS sensor included for the specified vehicles.

Key Features

• Rear wheel bearing and hub assembly for select Cadillac models
• Direct replacement design based on OE data and measurements
• High-precision manufacturing with strict quality-control standards
• ABS sensor included
• 5 wheel studs, 4 flange bolt holes, rectangular flange shape
• Wheel pilot diameter: 70.1 mm; brake pilot diameter: 70.6 mm
• Hub pilot diameter: 71.8 mm; flange diameter: 150.5 mm; flange offset: 64.8 mm
• Bolt circle diameter: 115.0 mm / 4.53 in

Detailed Description

InMotion WA512006 is a rear hub assembly for 1993-2002 Cadillac Eldorado, 1994-1999 Cadillac DeVille, 1993-1997 Cadillac Seville, and 1993 Cadillac Allante. This part number WA512006 is built to match the original mounting and dimensional requirements of the listed vehicles, making it a practical OE-style replacement for rear wheel service. The integrated ABS sensor supports vehicles that rely on wheel speed input at the hub.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Rear wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light concerns related to the wheel speed sensor circuit
• Uneven wheel mounting caused by worn hub components
• Restoring proper rear wheel support on Cadillac Eldorado, DeVille, Seville, and Allante models

Installation Notes and Tips

Verify rear fitment by year, model, and position before installation. Confirm the bolt circle, pilot diameters, stud count, and flange dimensions match the original hub assembly. Inspect the mating surfaces, axle area, and ABS connector condition during replacement, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using state-of-the-art production methods and strict quality-control criteria. Each unit is engineered from OE data and measurements to support accurate fitment and consistent performance on the listed Cadillac rear applications.
