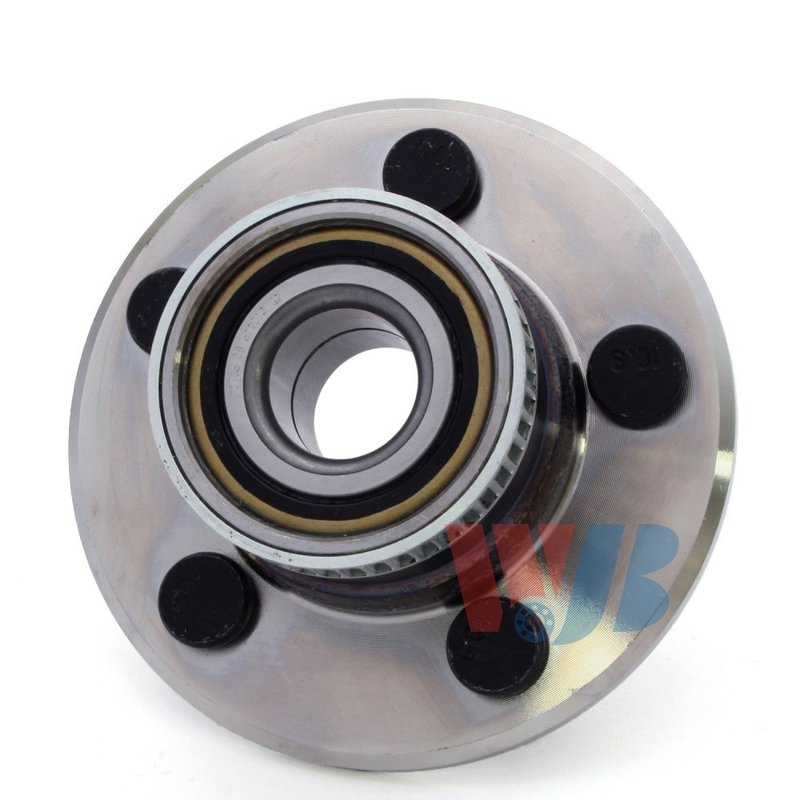

InMotion WA512013 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Neon

InMotion WA512013 is a rear wheel bearing and hub assembly built for 1998-1999 Dodge Neon and 1998-1999 Plymouth Neon applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

Key Features

• Rear wheel bearing and hub assembly for 1998-1999 Dodge Neon and Plymouth Neon
• Direct replacement design based on OE data and measurements
• Anti-lock brake sensor included
• 5 wheel studs
• Wheel pilot diameter: 56.9 mm
• Brake pilot diameter: 57.4 mm
• Hub pilot diameter: 2.76 in.
• Flange diameter: 135.0 mm
• Bolt circle diameter: 100.0 mm / 3.94 in.
• Flange offset: 52.4 mm

Detailed Description

WA512013 is a rear hub assembly designed for standard grade 1998-1999 Dodge Neon and 1998-1999 Plymouth Neon models. InMotion manufactures this part with high-precision processes and strict quality-control standards, using OE specifications to support proper fitment, bearing performance, and service life. The integrated ABS sensor helps maintain the original wheel speed sensing setup on the vehicle, while the 5-stud hub configuration and 100.0 mm bolt circle match the listed applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Wheel bearing noise from the rear of the vehicle
• Excessive hub play or looseness
• ABS warning light related to rear wheel speed sensing
• Uneven wheel rotation or vibration from hub wear
• Damaged or worn wheel studs on the rear hub

Installation Notes and Tips

Confirm rear position and standard grade application before ordering. Verify wheel pilot diameter, brake pilot diameter, bolt circle diameter, and flange offset against the original hub assembly. Because the ABS sensor is included, inspect the connector and wiring condition during installation and clear any stored ABS codes after replacement. Always torque wheel fasteners to the vehicle manufacturer’s specification.

Quality Assurance

InMotion builds this hub assembly using OE-based measurements and controlled manufacturing processes to support consistent fit and function on the listed Dodge Neon and Plymouth Neon rear applications.
