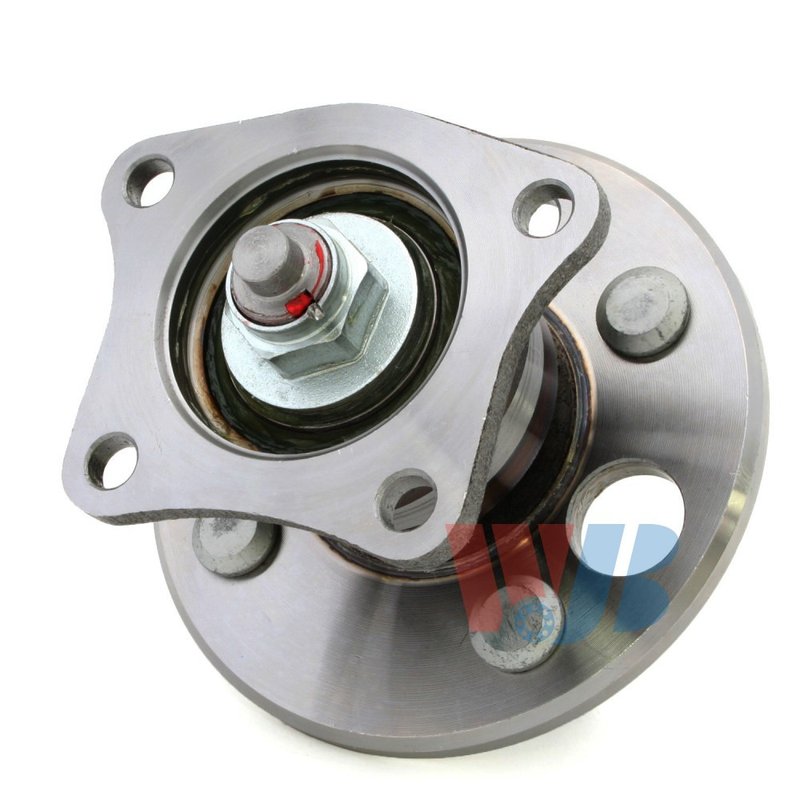

InMotion WA512018 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Corolla and Prizm

The InMotion WA512018 is a rear wheel bearing and hub assembly built for direct replacement on select Toyota Corolla, Chevrolet Prizm, and Geo Prizm applications. It is engineered from OE data and measurements to match the original fit, support consistent wheel mounting, and maintain dependable bearing performance.

• Rear wheel bearing and hub assembly for standard grade applications
• Fits 1993-2002 Toyota Corolla, rear
• Fits 1998-2002 Chevrolet Prizm, rear
• Fits 1993-1997 Geo Prizm, rear
• 4 wheel studs and 4 flange bolt holes
• Bolt circle diameter: 100.0 mm / 3.94 in
• Wheel pilot diameter: 54.0 mm
• Brake pilot diameter: 55.0 mm
• Hub pilot diameter: 2.4
• Flange diameter: 140.0 mm with offset trapezoid flange shape
• ABS sensor not included

OE-Style Fit and Construction

WA512018 is manufactured with high-precision processes and strict quality-control standards to support accurate fitment and long service life. The hub assembly is designed as a direct replacement for the original rear unit on Corolla and Prizm models, using OE measurements to align the wheel mounting surface, pilot diameters, and bolt pattern. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Addresses

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• Uneven wheel mounting caused by worn hub components
• Vibration from a damaged rear hub assembly
• Corrosion or wear at the wheel bearing mounting surface

Installation Notes

Confirm rear fitment by year, make, and model before ordering. Match the 4-lug bolt pattern, 100.0 mm bolt circle diameter, and pilot dimensions to the original part. Because the ABS sensor is not included, reuse or source the vehicle’s existing sensor setup as required by the application. Professional installation is recommended for proper torque, bearing seating, and final inspection.

Quality Assurance

InMotion manufactures this hub assembly using OE-based dimensions and controlled production standards to support consistent fitment and performance. Part number WA512018 is built for the specified rear Corolla and Prizm applications and is intended as a direct replacement for the original hub assembly.
