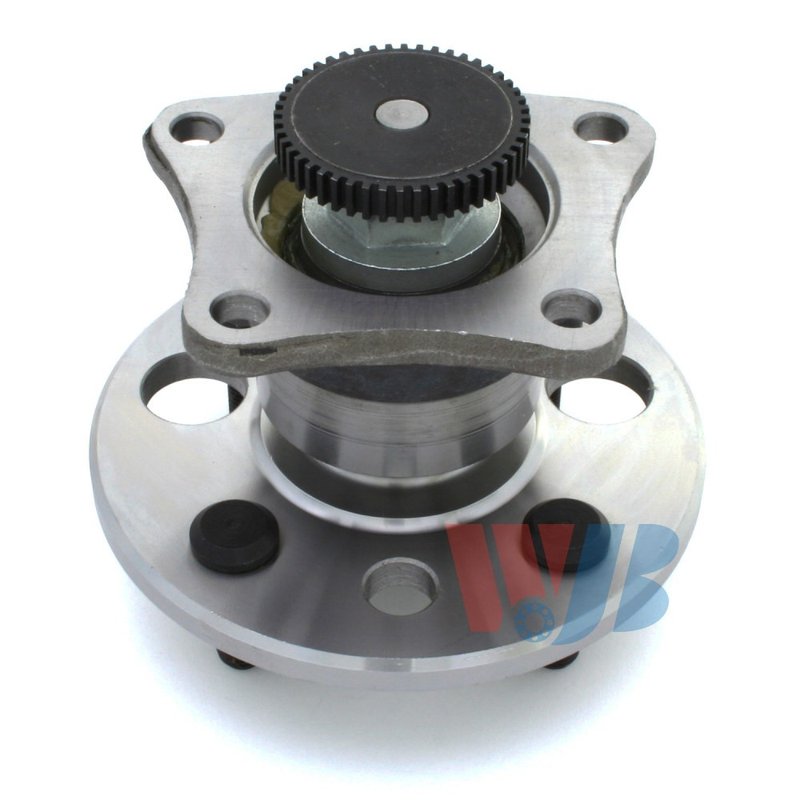

InMotion WA512019 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Toyota Corolla

InMotion WA512019 is a rear wheel bearing and hub assembly built for precise OE-style replacement on select Toyota Corolla and Geo Prizm applications. Engineered from OE data and measurements, this hub assembly is made to match the original fit, mounting points, and sensor requirements for dependable service.

Compatible with 1993-1997 Toyota Corolla, rear, and 1993-1995 Geo Prizm, rear, this InMotion hub assembly is a direct replacement option for standard grade vehicles. The WA512019 part number is also referenced for cross-application use as RW819.

Key Features

• Rear wheel bearing and hub assembly for select Toyota Corolla and Geo Prizm models
• Precision-manufactured using OE data and measurements
• Direct replacement design for designated applications
• Anti-lock brake sensor included
• 4 wheel studs and 4 flange bolt holes
• Offset trapezoid flange shape with 140.0 mm flange diameter
• 100.0 mm bolt circle diameter and 74.7 flange offset
• Wheel pilot diameter: 54.0 mm; brake pilot diameter: 55.0 mm
• Hub pilot diameter: 2.4

Product Details

InMotion WA512019 is engineered for rear axle service where a worn hub assembly can affect wheel support, brake performance, or ABS signal operation. The assembly is manufactured under strict quality-control criteria and built to the specified application dimensions for 1993-1997 Toyota Corolla rear and 1993-1995 Geo Prizm rear use. If you are searching for a rear wheel bearing hub assembly for Toyota Corolla or a Geo Prizm rear hub replacement, this part number provides the required fitment and sensor inclusion in one assembly.

This part cross-references RW819 for the same application.

What It Helps Fix

• Wheel play or looseness at the rear hub
• Noise from a worn rear wheel bearing assembly
• ABS warning concerns related to a failing hub sensor setup
• Uneven wheel support caused by hub wear
• Brake and wheel mounting issues tied to damaged hub components

Installation Notes

Verify rear fitment by year, make, model, and standard grade application before installation. Confirm bolt circle diameter, flange offset, and sensor configuration against the original part to ensure proper alignment. Professional installation is recommended, and all mounting surfaces should be inspected for wear or damage before the new hub assembly is installed.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control standards. Each WA512019 unit is built to match OE specifications for fitment, performance, and service life on the listed Toyota Corolla and Geo Prizm rear applications.
