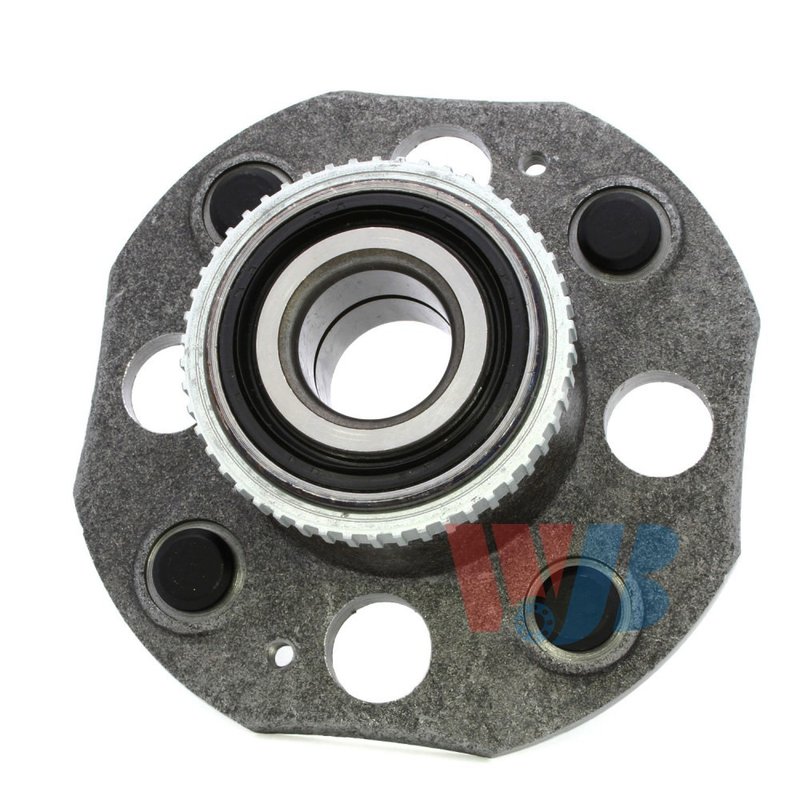

InMotion WA512020 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Honda Accord

The InMotion WA512020 rear wheel bearing and hub assembly is built for 1994-1997 Honda Accord Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

• Fits 1994-1997 Honda Accord, rear, Standard Grade
• Wheel stud quantity: 4
• Anti-lock brake sensor included: Yes
• Bolt circle diameter: 114.3 mm / 4.504 in
• Wheel pilot diameter: 64.1 mm
• Brake pilot diameter: 64.1 mm
• Hub pilot diameter: 2.598 in
• Flange diameter: 151.8 mm
• Flange offset: 55.9 mm

Built to OE Dimensions

InMotion WA512020 is manufactured with high-precision processes and strict quality-control standards to match the original rear hub assembly on the Honda Accord. The OE-based design supports proper wheel mounting, brake interface alignment, and sensor integration for a direct replacement on 1994, 1995, 1996, and 1997 Honda Accord rear applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Uses

• Rear wheel bearing noise on a 1994-1997 Honda Accord
• Wheel play or looseness at the rear hub
• ABS sensor-related rear wheel speed signal issues
• Uneven rear wheel rotation caused by hub wear
• Replacement after hub or bearing damage on Honda Accord rear assemblies

Installation Notes

Confirm rear fitment, wheel stud count, and bolt circle diameter before installation. Verify the ABS sensor connection and mounting surfaces are clean and free of corrosion. Always compare the old hub assembly to the new unit and follow the vehicle service manual for torque specifications and bearing/hub installation procedures.

Quality Assurance

InMotion manufactures this wheel bearing and hub assembly using OE data, precise measurements, and controlled production standards to support correct fitment and long-term service life on the specified Honda Accord rear applications.
