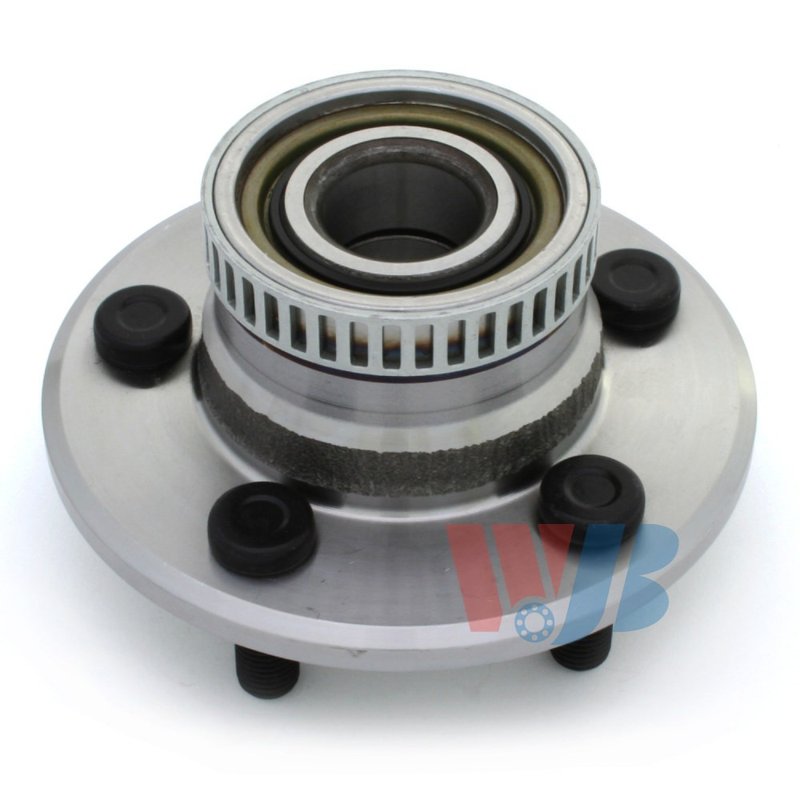

InMotion WA512023 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Neon

The InMotion WA512023 is a rear wheel bearing and hub assembly built for 1995-1997 Dodge Neon and 1995-1997 Plymouth Neon applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

Key Features

• Direct replacement rear hub assembly for Dodge Neon and Plymouth Neon
• Built with high-precision manufacturing and strict quality-control standards
• OE-data-based dimensions for fitment, performance, and service life
• Anti-lock brake sensor included
• 5 wheel studs with 100.0 bolt circle diameter
• Wheel pilot diameter: 56.8 mm; brake pilot diameter: 57.3 mm
• Hub pilot diameter: 2.76 in; flange diameter: 135.3 mm; flange offset: 49.4 mm
• Part number WA512023 for catalog and cross-reference use

Detailed Description

InMotion WA512023 is a rear wheel bearing and hub assembly designed for standard-grade 1995-1997 Dodge Neon and 1995-1997 Plymouth Neon models. The assembly is manufactured to OE measurements so the hub location, stud pattern, and sensor interface align with the original rear suspension and braking setup. With the ABS sensor included, this unit supports vehicles that require integrated wheel speed sensing at the rear hub. The WA512023 is a practical OE-style replacement when servicing a worn or noisy rear hub on a Dodge Neon or Plymouth Neon.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling from the hub area
• Excessive wheel play or looseness at the rear wheel
• ABS warning light caused by a failed rear hub sensor assembly
• Uneven rear wheel rotation due to hub wear
• Vibration or roughness traced to the rear bearing assembly

Installation Notes and Tips

Confirm rear fitment by year, make, model, and standard-grade application before installation. Inspect the knuckle, axle interface, and mounting surfaces for wear or corrosion, and verify the ABS connector and sensor routing match the original configuration. Torque the wheel studs and hub fasteners to the vehicle manufacturer’s specifications, and check wheel bearing operation and ABS function after installation. Part number WA512023 should be matched to the rear position only.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support proper fitment and long-term service on the specified Dodge Neon and Plymouth Neon rear applications.
