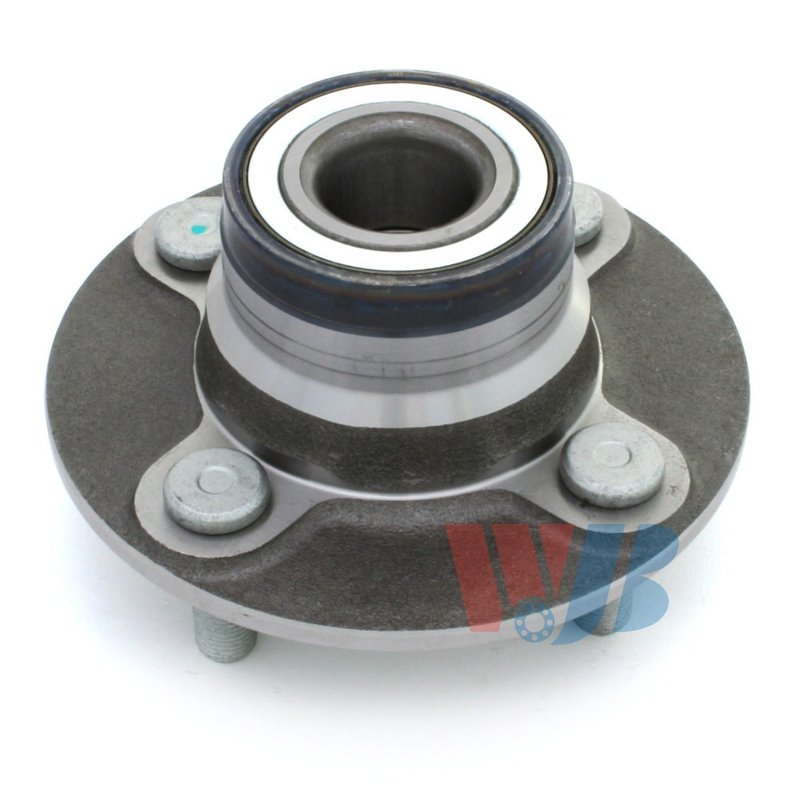

InMotion WA512025 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Nissan

The InMotion WA512025 wheel bearing and hub assembly is a direct replacement rear hub built for precise fitment and dependable wheel support. Engineered from OE data and measurements, it is made for Nissan Sentra, 200SX, and NX rear applications across the listed model years.

• Rear wheel bearing and hub assembly
• Direct replacement design for OE-style fitment
• Manufactured using high-precision processes and strict quality-control criteria
• Wheel stud quantity: 4
• Bolt circle diameter: 100.0 mm / 3.94 in
• Flange diameter: 134.0 mm
• Flange offset: 52.6 mm
• Wheel pilot diameter: 58.9 mm
• Brake pilot diameter: 68.0 mm
• Hub pilot diameter: 2.45 in
• ABS sensor not included

Fitment Details

• Fits 1990-1999 Nissan Sentra, rear, Standard Grade
• Fits 1995-1998 Nissan 200SX, rear, Standard Grade
• Fits 1991-1993 Nissan NX, rear, Standard Grade

What This Hub Assembly Helps Address

• Wheel bearing noise from a worn rear hub
• Excessive wheel play or looseness at the rear axle
• Uneven wheel rotation caused by hub wear
• Vibration or roughness from a deteriorated bearing assembly
• Fitment issues when replacing an original rear hub on Nissan Sentra, 200SX, or NX models

Installation Notes

Confirm rear application, wheel stud count, bolt circle diameter, and pilot dimensions before installation. Because the ABS sensor is not included, verify whether your vehicle requires a separate sensor or reuse of existing components. For best results, compare the original hub assembly to the WA512025 before pressing or bolting the part into place.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support proper fit, performance, and service life. Part number WA512025 is built as a direct replacement for the specified rear Nissan applications.
