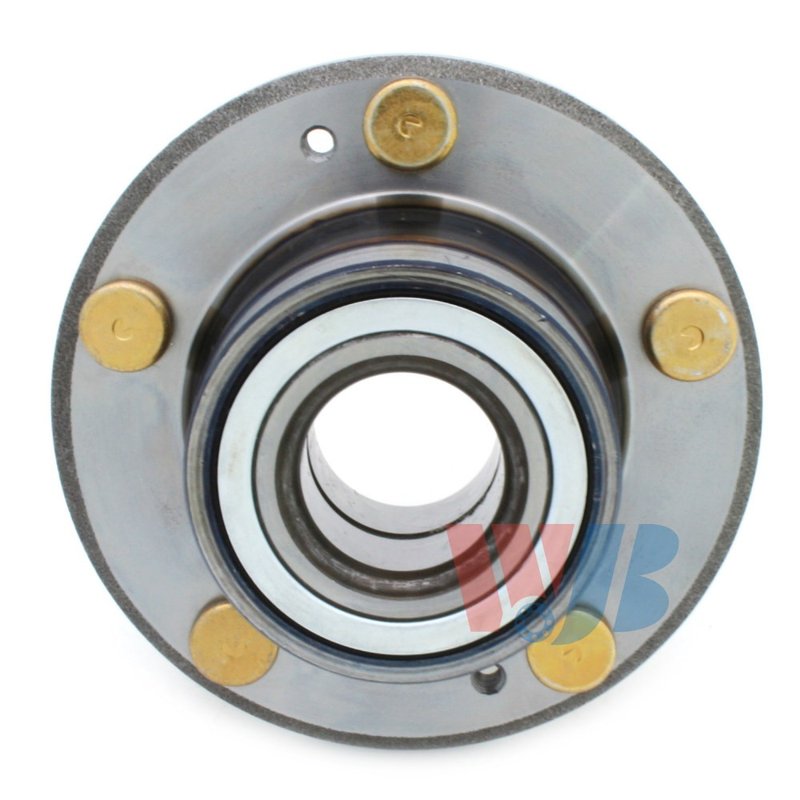

InMotion WA512039 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Mitsubishi and Dodge

The InMotion WA512039 wheel bearing and hub assembly is a direct replacement for rear applications on select Mitsubishi 3000GT and Dodge Stealth models. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

Compatible with 1991-1999 Mitsubishi 3000GT, rear, Standard Grade, and 1991-1996 Dodge Stealth, rear, Standard Grade. The WA512039 is designed around the original hub dimensions and mounting pattern for a precise replacement.

Key Features

• Wheel bearing and hub assembly for rear installation
• 5 wheel studs
• Bolt circle diameter: 114.3 mm / 4.5 in.
• Wheel pilot diameter: 67.0 mm
• Hub pilot diameter: 77.0 mm
• Brake pilot diameter: 90.0 mm
• Flange diameter: 140.0 mm
• Flange offset: 57.0 mm
• ABS sensor not included
• OE-data-based design for direct replacement fitment

Detailed Description

InMotion WA512039 is a rear wheel bearing and hub assembly built for select Mitsubishi 3000GT and Dodge Stealth vehicles. It uses high-precision manufacturing and strict quality-control criteria to match the original application dimensions, including the 5-lug 114.3 mm bolt circle, 67.0 mm wheel pilot diameter, and 77.0 mm hub pilot diameter. This part number, WA512039, is intended for drivers replacing a worn or noisy rear hub assembly while maintaining factory-style fit and wheel mounting geometry.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• Uneven wheel mounting caused by hub wear
• Vibration related to a worn rear hub assembly
• Service replacement for damaged rear hub components

Installation Notes and Tips

Confirm rear fitment by year, make, model, and Standard Grade application before ordering. Verify the 5-stud bolt pattern, pilot diameters, and flange dimensions against the original part. Because the ABS sensor is not included, reuse or source the correct sensor arrangement for the vehicle as needed. For best results, inspect related rear suspension and brake components during installation.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements with strict quality-control standards to support accurate fitment and consistent performance. The WA512039 is built as a direct replacement for the original rear hub assembly on the listed Mitsubishi 3000GT and Dodge Stealth applications.
