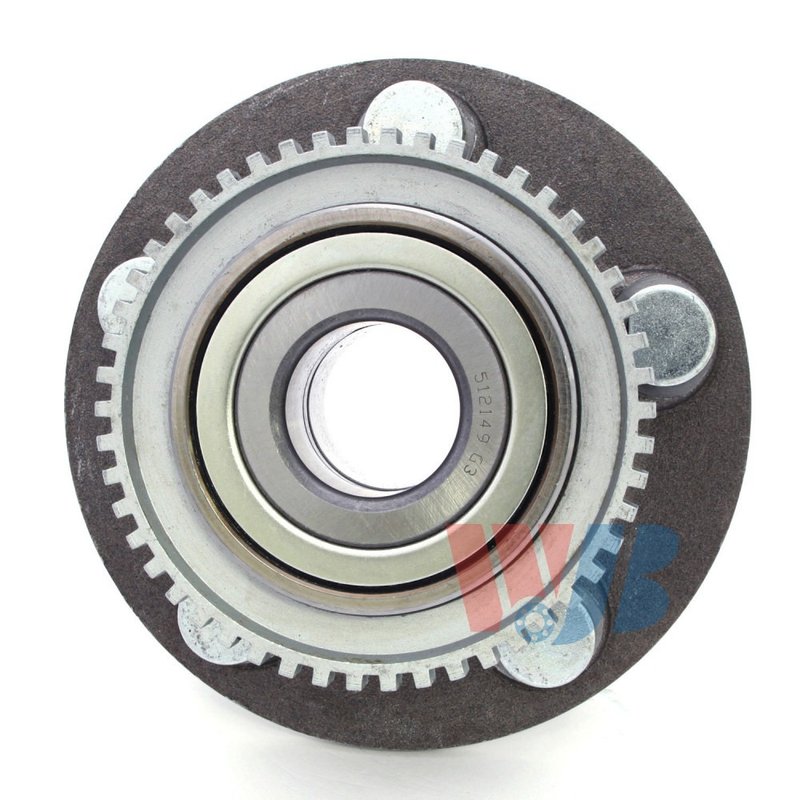

InMotion WA512149 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Windstar

The InMotion WA512149 is a rear wheel bearing and hub assembly built for 1997-2003 Ford Windstar models. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the application.

Key Features

• Direct replacement rear hub assembly for Ford Windstar
• Fits 1997-2003 Ford Windstar, rear
• ABS sensor included for vehicles equipped with anti-lock braking
• 5 wheel studs
• Wheel pilot diameter: 63.2 mm
• Brake pilot diameter: 64.4 mm
• Hub pilot diameter: 74.9 mm
• Bolt circle diameter: 108.2 mm / 4.25 in
• Flange diameter: 139.0 mm
• Flange offset: 2.15

Detailed Description

InMotion WA512149 is a rear wheel bearing and hub assembly designed for the 1997-2003 Ford Windstar, rear. Built with high-precision manufacturing and strict quality-control standards, this assembly follows OE data and measurements to support correct fitment, smooth wheel rotation, and consistent service life. The included ABS sensor helps maintain proper wheel speed signal function on equipped vehicles. This part number, WA512149, is a direct replacement option for Windstar owners replacing a worn rear hub assembly.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness
• ABS warning light concerns related to hub sensor failure
• Uneven wheel rotation caused by hub wear
• Vibration from a worn rear hub assembly

Installation Notes and Tips

Confirm rear fitment before ordering: Fits 1997-2003 Ford Windstar, rear. Verify wheel stud count, bolt circle, and pilot diameters against the removed part before installation. Clean the mounting surface thoroughly and torque fasteners to factory specifications during service. The part number WA512149 should be matched to the vehicle’s rear application and ABS configuration before installation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support proper fit, performance, and longevity. WA512149 is built as a direct replacement for the original rear hub assembly on the specified Ford Windstar applications.
