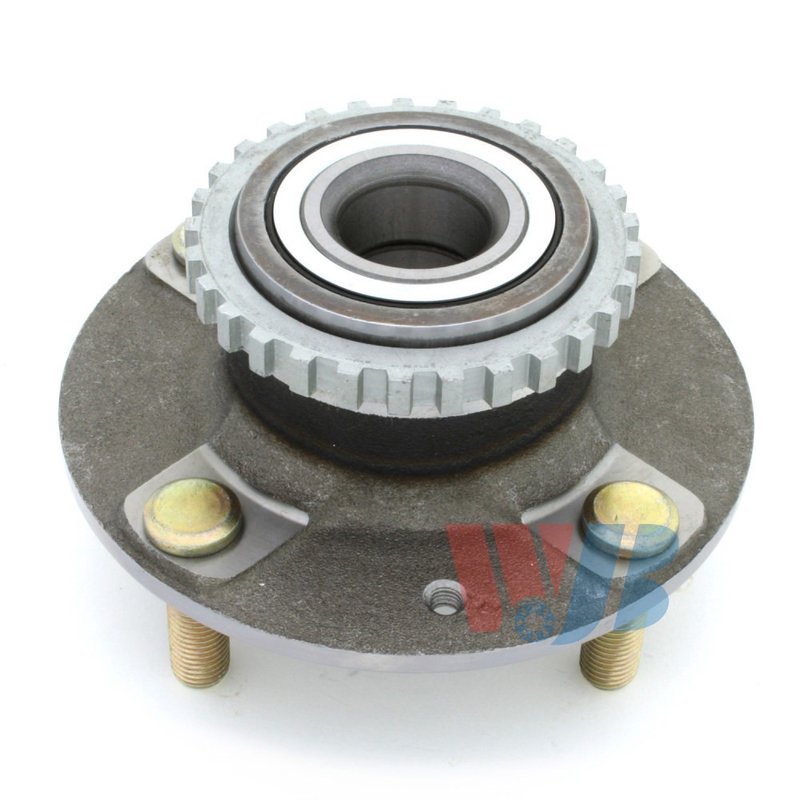

InMotion WA512160 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Hyundai

The InMotion WA512160 is a rear wheel bearing and hub assembly built for specific Hyundai applications, including the 1996-2000 Hyundai Elantra rear and 1997-2001 Hyundai Tiburon rear. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original application.

Key Features

• Rear wheel bearing and hub assembly for Hyundai Elantra and Hyundai Tiburon
• Direct replacement design based on OE dimensions and application data
• Anti-lock brake sensor included
• 4-wheel stud design
• Bolt circle diameter: 114.3 mm / 4.5 in.
• Wheel pilot diameter: 67.0 mm
• Brake pilot diameter: 76.0 mm
• Hub pilot diameter: 2.64 in.
• Flange diameter: 139.0 mm
• Flange offset: 50.5 mm

Detailed Description

InMotion WA512160 is a rear wheel bearing and hub assembly manufactured with precise tolerances and quality-control standards for consistent fit and function. It is designed for 1996-2000 Hyundai Elantra rear and 1997-2001 Hyundai Tiburon rear applications, making it a direct OE-style replacement for service work on these vehicles. The assembly includes the ABS sensor and is built around the specified wheel stud count, pilot diameters, flange dimensions, and 4.5-inch bolt circle to match the original mounting points and wheel interface. This part number, WA512160, is a practical choice when replacing a worn rear hub on a Hyundai Elantra or Hyundai Tiburon.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Reasons for Replacement

• Rear wheel bearing noise or rough rotation
• Excessive hub play or looseness
• ABS warning light related to the wheel speed sensor circuit
• Uneven wheel mounting or damaged wheel studs
• Vibration or instability from a worn rear hub assembly

Installation Notes and Tips

Verify rear fitment before installation on the Hyundai Elantra or Hyundai Tiburon, and confirm the 4-stud, 4.5-inch bolt pattern matches the vehicle specification. Inspect the knuckle, axle area, and mounting surfaces for wear or corrosion before installing WA512160. Because the ABS sensor is included, check connector routing and sensor alignment during assembly to avoid fault codes after installation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and strict quality-control criteria to support proper fitment, performance, and service life. The WA512160 is built as a direct replacement for the original rear hub assembly on the listed Hyundai applications.
