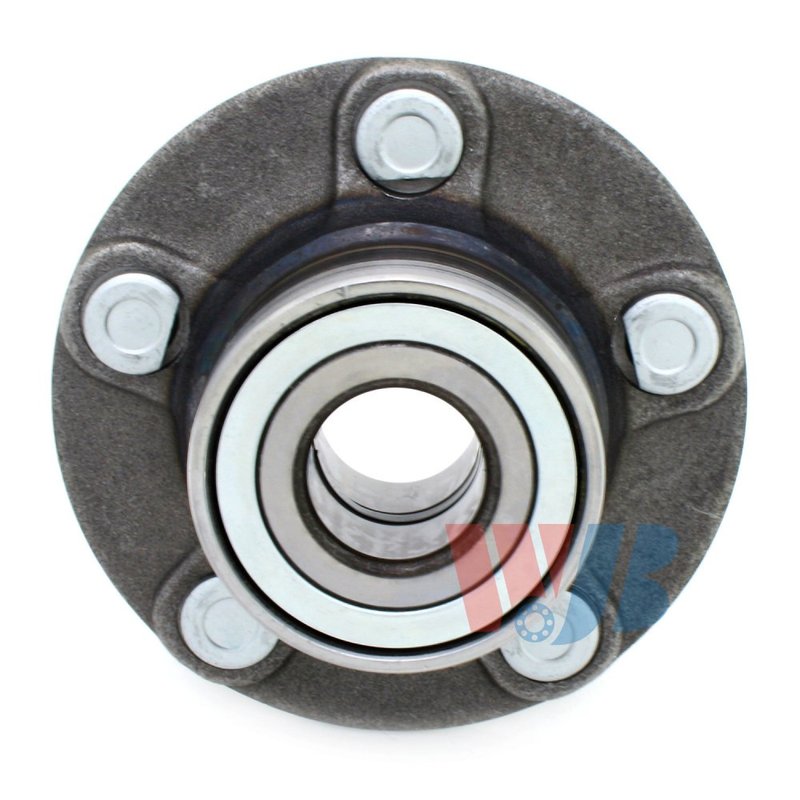

InMotion WA512164 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Taurus and Sable

InMotion WA512164 is a rear wheel bearing and hub assembly built for direct replacement on select Ford Taurus and Mercury Sable applications. It is engineered from OE data and measurements to match the original fit, performance, and service life requirements for the rear axle.

Compatible with 2001-2007 Ford Taurus, rear, Standard Grade, and 2001-2004 Mercury Sable, rear, Standard Grade, this hub assembly is designed around the specified wheel and brake pilot dimensions, bolt pattern, and flange geometry for accurate installation.

Key Features

• Part number WA512164
• Rear wheel bearing and hub assembly
• Direct replacement design for select Ford Taurus and Mercury Sable models
• Wheel stud quantity: 5
• Bolt circle diameter: 108.0 mm and 4.25 in
• Wheel pilot diameter: 63.2 mm
• Brake pilot diameter: 64.4 mm
• Hub pilot diameter: 75.0 mm
• Flange diameter: 139.0 mm
• Flange offset: 54.6 mm
• ABS sensor not included

Detailed Description

InMotion WA512164 is manufactured with high-precision processes and strict quality-control standards to deliver a rear hub assembly that matches the original application requirements. The design uses OE data and measurements to support proper fitment on rear-wheel service applications for the Ford Taurus and Mercury Sable, helping maintain correct wheel mounting, brake alignment, and hub location. If you are replacing a worn rear hub on a 2001-2007 Ford Taurus or a 2001-2004 Mercury Sable, WA512164 provides the specified dimensions and 5-stud configuration needed for the job.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Rear wheel bearing noise or rough rotation
• Excessive wheel play at the hub
• Vibration from a worn rear hub assembly
• Improper wheel mounting due to damaged studs or hub surfaces
• Brake and wheel alignment issues caused by hub wear

Installation Notes and Tips

• Verify rear fitment by year, make, model, and Standard Grade application before ordering.
• Confirm the 5-stud bolt pattern and pilot dimensions match the original hub.
• Inspect the knuckle, axle area, and mounting surfaces for wear or damage before installation.
• Because the ABS sensor is not included, transfer or service the sensor separately if the vehicle requires one.
• Use proper torque procedures for wheel and hub fasteners during installation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fit and long-term service performance. WA512164 is built as a direct replacement part for the listed rear applications.
