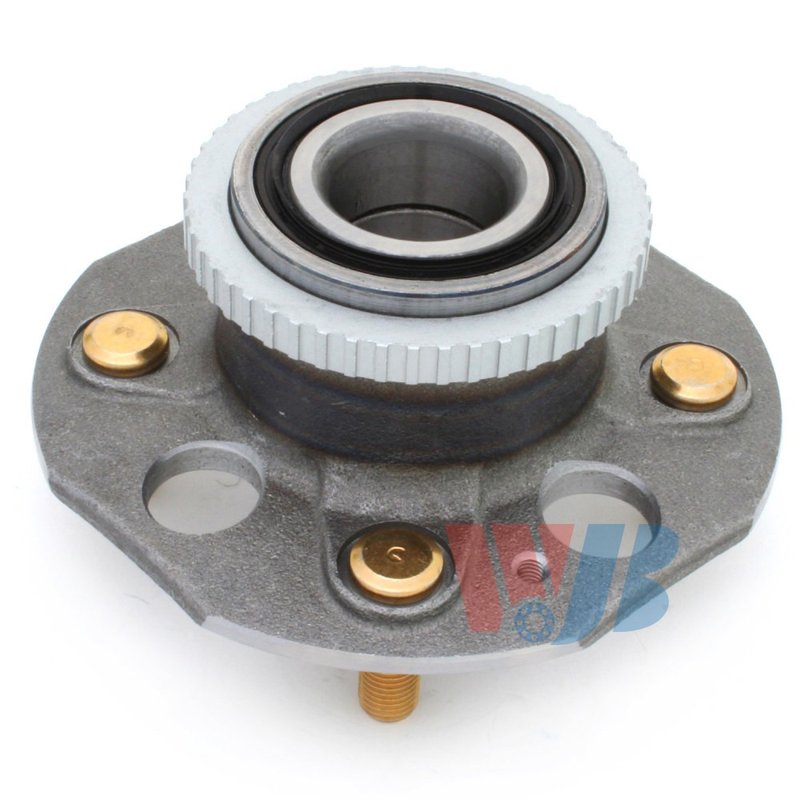

InMotion WA512172 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Acura and Honda

InMotion WA512172 is a rear wheel bearing and hub assembly built for specific Acura CL and Honda Accord applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

Key Features

• Rear wheel bearing and hub assembly for 1997-1999 Acura CL and 1994-1997 Honda Accord
• Direct replacement design based on OE data and dimensional measurements
• Anti-lock brake sensor included
• 4-wheel stud configuration
• Bolt circle diameter: 114.3 mm / 4.5 in
• Hub pilot diameter: 71.0 mm
• Brake pilot diameter: 64.0 mm
• Wheel pilot diameter: 2.52 in
• Flange diameter: 152.0 mm
• Flange offset: 56.0 mm

Detailed Description

InMotion WA512172 is manufactured with high-precision processes and strict quality-control standards to match the original rear hub assembly on select Acura and Honda vehicles. This part number WA512172 is built for rear installation on 1997-1999 Acura CL and 1994-1997 Honda Accord models, making it a direct-fit option for drivers replacing a worn rear wheel bearing hub assembly. The integrated ABS sensor and OE-based dimensions help maintain proper wheel mounting, brake interface, and sensor alignment.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Rear wheel bearing noise such as humming, growling, or rumbling
• Excessive wheel play from a worn hub assembly
• ABS warning light concerns related to a failed hub sensor assembly
• Uneven wheel mounting or vibration from hub wear
• Fitment issues caused by a damaged or corroded rear hub

Installation Notes and Tips

Confirm rear fitment before installation on Acura CL and Honda Accord applications. Verify bolt circle, stud count, pilot diameters, and flange dimensions against the original part before pressing or bolting the assembly into place. Inspect the mating surfaces, axle area, and ABS wiring condition during service to help ensure proper installation and sensor operation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support correct fitment, performance, and service life. Part number WA512172 is produced as a direct replacement for the designated rear applications.
