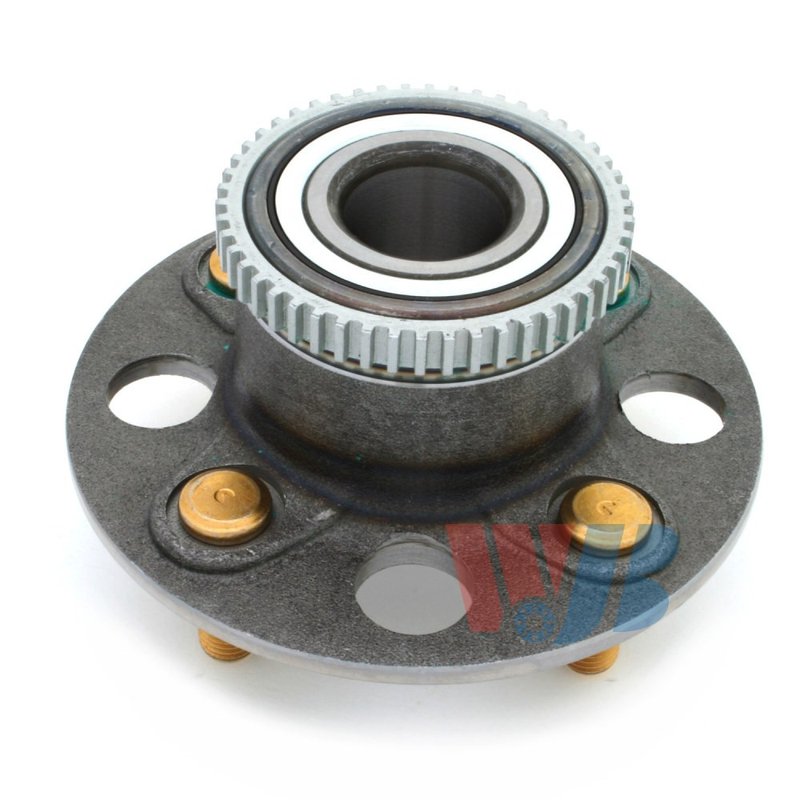

InMotion WA512175 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Civic and EL

The InMotion WA512175 is a rear wheel bearing and hub assembly built for 2001-2005 Honda Civic and 2001-2005 Acura EL applications. It is engineered from OE data and measurements to match the original fit, mounting points, and bearing function for direct replacement service.

Key Features

• Rear wheel bearing and hub assembly for Honda Civic and Acura EL
• Part number WA512175
• 4 wheel studs with 102.0 bolt circle diameter
• Anti-lock brake sensor included
• Wheel pilot diameter: 56.0
• Brake pilot diameter: 61.0
• Hub pilot diameter: 66.0
• Flange diameter: 139.0 with 56.0 flange offset

Detailed Product Information

InMotion manufactures this hub assembly with high-precision processes and strict quality-control standards to support consistent fitment and service life. The WA512175 is built as a direct replacement for the original rear hub on 2001-2005 Honda Civic and 2001-2005 Acura EL models, using OE-based dimensions to align with the vehicle’s wheel mounting and brake interface. The integrated ABS sensor helps maintain the factory-style wheel speed sensing setup, while the 4-stud design and specified pilot diameters support proper wheel and brake component location. This part number, WA512175, is a practical choice when replacing a worn rear hub on a Honda Civic or Acura EL.

Common Problems This Part Can Address

• Rear wheel bearing noise or rough rotation
• Excessive hub play or looseness
• ABS warning light caused by hub sensor issues
• Uneven wheel mounting from worn hub components
• Vibration or humming from the rear wheel area

Installation Notes and Tips

Confirm rear position and verify all OE measurements before installation. Inspect the knuckle, axle area, and brake components for wear or damage before pressing in the new assembly. Because this hub includes an ABS sensor, check the connector and wiring condition during service and clear any stored fault codes after installation. For best results, torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion builds this hub assembly using OE data, precise measurements, and controlled manufacturing standards to support proper fitment and long-term service. The WA512175 is made for direct replacement use on the listed Honda Civic and Acura EL rear applications.
