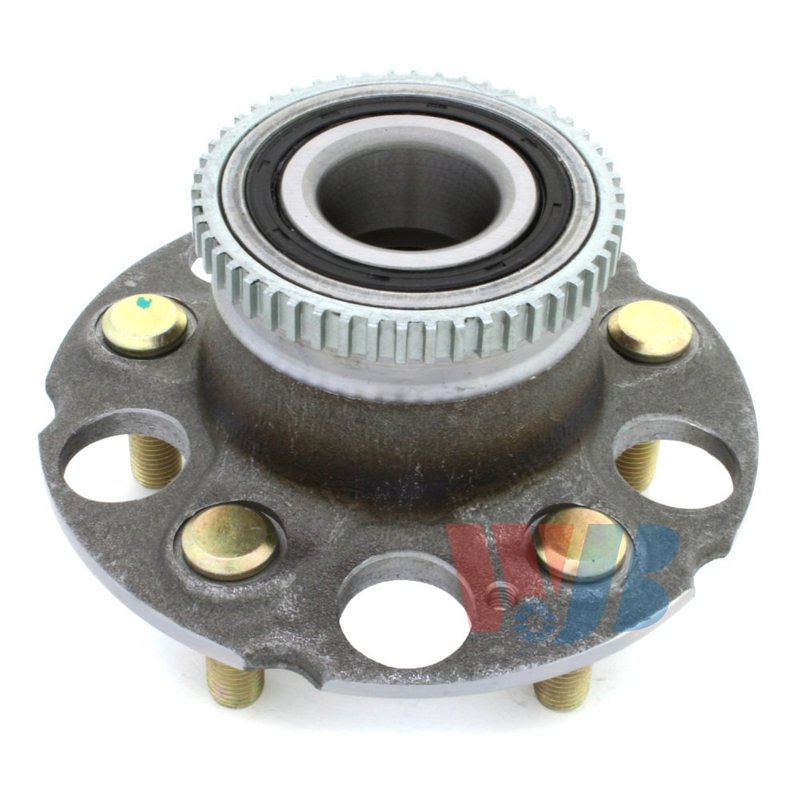

InMotion WA512180 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Honda Odyssey

The InMotion WA512180 wheel bearing and hub assembly is built for rear applications with OE-based measurements for fit, function, and service life. It is a direct replacement style hub assembly for 1999-2004 Honda Odyssey and 1999 Isuzu Oasis rear positions, with ABS sensor integration included.

Key Features

• Rear wheel bearing and hub assembly for select Honda Odyssey and Isuzu Oasis applications
• ABS sensor included for vehicles equipped with anti-lock braking systems
• 5 wheel studs
• Bolt circle diameter: 4.5 in. / 118.0 mm
• Hub pilot diameter: 73.0 mm
• Brake pilot diameter: 64.0 mm
• Wheel pilot diameter: 2.52 in.
• Flange diameter: 152.0 mm
• Flange offset: 62.0 mm
• Engineered from OE data and measurements for accurate fitment

Product Details

InMotion WA512180 is manufactured with high-precision processes and strict quality-control standards to match the original rear hub assembly dimensions. It is built for direct replacement use on Fits 1999-2004 Honda Odyssey, rear and Fits 1999 Isuzu Oasis, rear. The hub assembly supports proper wheel mounting, bearing operation, and ABS signal integration where equipped. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or rough rotation
• Excessive wheel play from a worn hub assembly
• ABS warning light caused by a failed hub-mounted sensor
• Uneven wheel mounting caused by damaged hub pilot surfaces
• Vibration or instability related to hub wear

Installation Notes

Verify rear fitment by year, make, model, and position before installation. Confirm bolt circle, pilot diameters, and stud count against the original part, especially on 1999-2004 Honda Odyssey and 1999 Isuzu Oasis rear applications. Clean the mounting surface, inspect related brake and suspension components, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fitment and long-term service. Part number WA512180 is built as a direct replacement style component for the listed rear applications.
