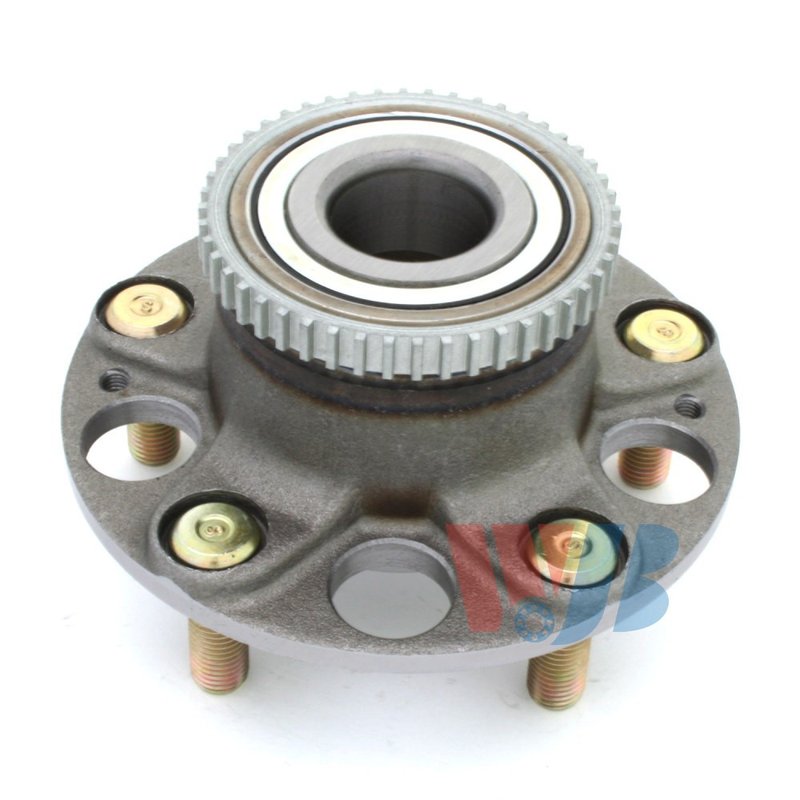

InMotion WA512188 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly

The InMotion WA512188 is a rear wheel bearing and hub assembly built for direct replacement on select Acura TL and Honda Accord applications. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

For drivers searching for a rear wheel bearing hub assembly for 2004-2008 Acura TL or 2003-2007 Honda Accord, this unit combines the hub, bearing, and ABS sensor in one service part. The WA512188 is designed to match the original mounting and dimensional requirements of the vehicle.

• Rear wheel bearing and hub assembly
• Fits 2004-2008 Acura TL, rear, Standard Grade
• Fits 2003-2007 Honda Accord, rear, Standard Grade
• 5 wheel studs for secure wheel mounting
• ABS sensor included
• Bolt circle diameter: 114.3 mm / 4.5 in
• Flange diameter: 139.5 mm
• Flange offset: 56.0 mm
• Hub pilot diameter: 3.17 in
• Brake pilot diameter: 64.0 mm
• Wheel pilot diameter: 2.52 in

Fitment and Application Details

Compatible with rear axle service on 2004, 2005, 2006, 2007, and 2008 Acura TL models, as well as 2003, 2004, 2005, 2006, and 2007 Honda Accord models. Part number WA512188 is a direct replacement option for vehicles that use the listed hub dimensions and ABS-equipped rear setup.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn rear hub assembly
• ABS warning light concerns related to a failed sensor-equipped hub
• Wheel looseness or play at the rear axle
• Uneven wheel rotation caused by bearing wear
• Hub mounting issues on Acura TL and Honda Accord rear applications

Installation Notes and Tips

Confirm rear fitment by matching the vehicle year, model, and OE dimensions before installation. Inspect the mounting surface, axle area, and surrounding brake components for wear or damage, and verify ABS connector routing during replacement. Part number WA512188 should be installed according to factory service procedures for the specific Acura TL or Honda Accord application.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built to OE data and measurements to support proper fitment, performance, and durability in the listed rear applications.
