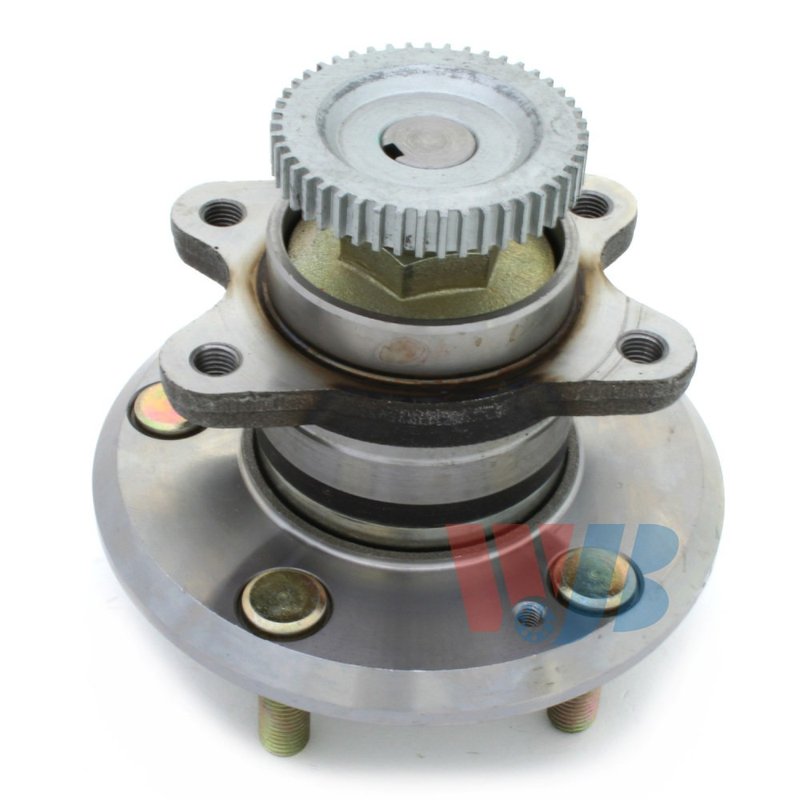

InMotion WA512189 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing and Hub Assembly for Hyundai XG350/XG300

InMotion WA512189 is a rear wheel bearing and hub assembly built for direct replacement on select Hyundai applications. It is engineered from OE data and measurements for proper fitment, stable wheel support, and consistent service life on the 2001 Hyundai XG300 and 2002-2005 Hyundai XG350.

Key Features

• Direct replacement rear hub assembly for select Hyundai models
• Precision-manufactured using OE data and dimensional measurements
• 5 wheel studs with a 4-bolt flange pattern
• Integrated ABS sensor included
• Flange diameter: 148.0 mm; flange offset: 59.0 mm
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 67.0 mm; hub pilot diameter: 66.0 mm
• Brake pilot diameter: 76.0 mm

Detailed Description

InMotion WA512189 is manufactured with strict quality-control criteria and high-precision production methods to match the original hub assembly dimensions. The rectangular flange design, 5-stud layout, and integrated anti-lock brake sensor support proper rear-wheel service on the Hyundai XG350 and Hyundai XG300. This part number, WA512189, is intended as a direct replacement for the original rear hub assembly on the listed vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Wheel bearing noise from the rear hub area
• Excessive wheel play or looseness
• ABS warning light concerns related to the rear wheel speed sensor circuit
• Uneven rear wheel rotation caused by hub wear
• Vibration or roughness from a worn hub assembly

Installation Notes and Tips

Confirm rear-position fitment before ordering: Fits 2001 Hyundai XG300, rear, Standard Grade; Fits 2002-2005 Hyundai XG350, rear, Standard Grade. Verify bolt circle, flange dimensions, and sensor connection against the removed part before installation. Clean the mounting surface thoroughly and inspect related brake and axle components for wear while servicing the hub assembly. Part number WA512189 should be matched to the vehicle’s rear hub specification before final assembly.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control standards and uses OE-based measurements to support accurate fitment and dependable performance. WA512189 is built as a direct replacement rear wheel bearing and hub assembly for the listed Hyundai XG300 and Hyundai XG350 applications.
