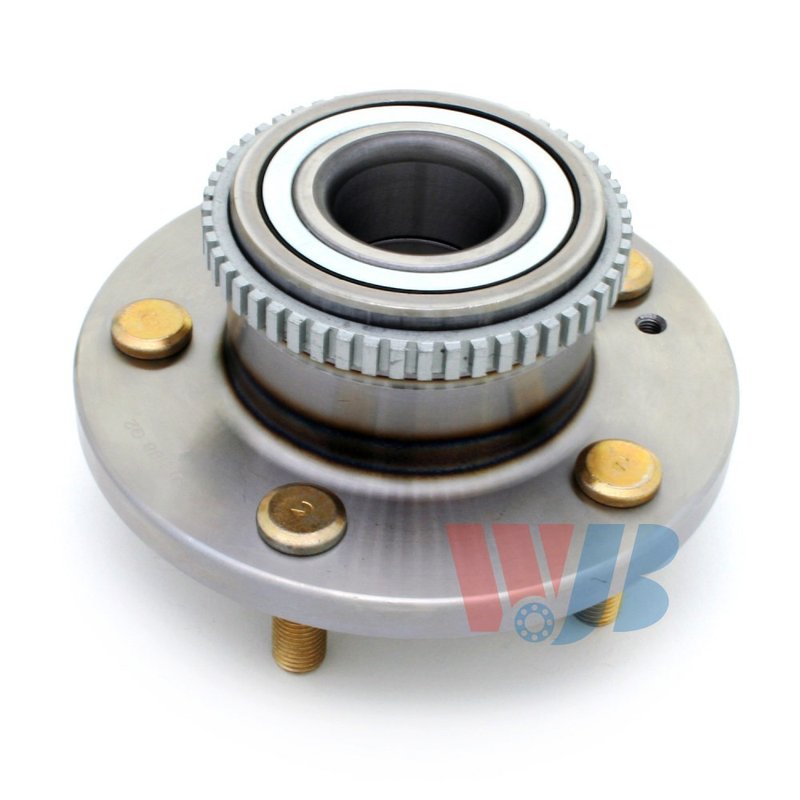

InMotion WA512196 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Santa Fe

InMotion WA512196 is a rear wheel bearing and hub assembly built for 2001-2006 Hyundai Santa Fe models with standard grade fitment. It is engineered from OE data and measurements to match the original application, with the hub, bearing, and ABS sensor integration needed for a direct replacement.

For Hyundai Santa Fe rear hub service, WA512196 provides the dimensional accuracy and application-specific design needed for proper wheel mounting, brake alignment, and sensor operation. The part number WA512196 is a direct-fit replacement for the listed rear position.

Key Features

• Fits 2001-2006 Hyundai Santa Fe, rear
• Wheel bearing and hub assembly for direct replacement use
• ABS sensor included for vehicles equipped with wheel speed sensing
• 5-wheel-stud design
• OE-based dimensions for fitment, performance, and service life
• Flange diameter: 148.1 mm
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 67.0 mm
• Brake pilot diameter: 76.0 mm
• Hub pilot diameter: 3.54 in
• Flange offset: 56.3 mm

Detailed Description

InMotion WA512196 is a rear wheel bearing hub assembly designed for the 2001-2006 Hyundai Santa Fe. It is manufactured with precise tolerances and quality-control standards, using OE measurements to support correct wheel fitment and stable hub operation. The assembly includes the ABS sensor and is built around the specified rear application, making it a practical replacement for worn or noisy rear hub components on the Hyundai Santa Fe.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling
• Excessive hub play or looseness
• ABS warning light caused by a failed wheel speed sensor in the hub assembly
• Uneven wheel mounting caused by hub wear
• Brake rotor alignment issues related to hub damage

Installation Notes and Tips

Confirm rear fitment before ordering: Fits 2001-2006 Hyundai Santa Fe, rear. Verify the 5-stud bolt pattern, flange dimensions, and sensor connection against the original part before installation. Clean the mounting surface, inspect the knuckle and axle-related hardware for wear, and torque fasteners to factory specifications during reassembly.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. The part is engineered from OE data and measurements to support correct fitment and long-term service in the listed Hyundai Santa Fe rear applications.
