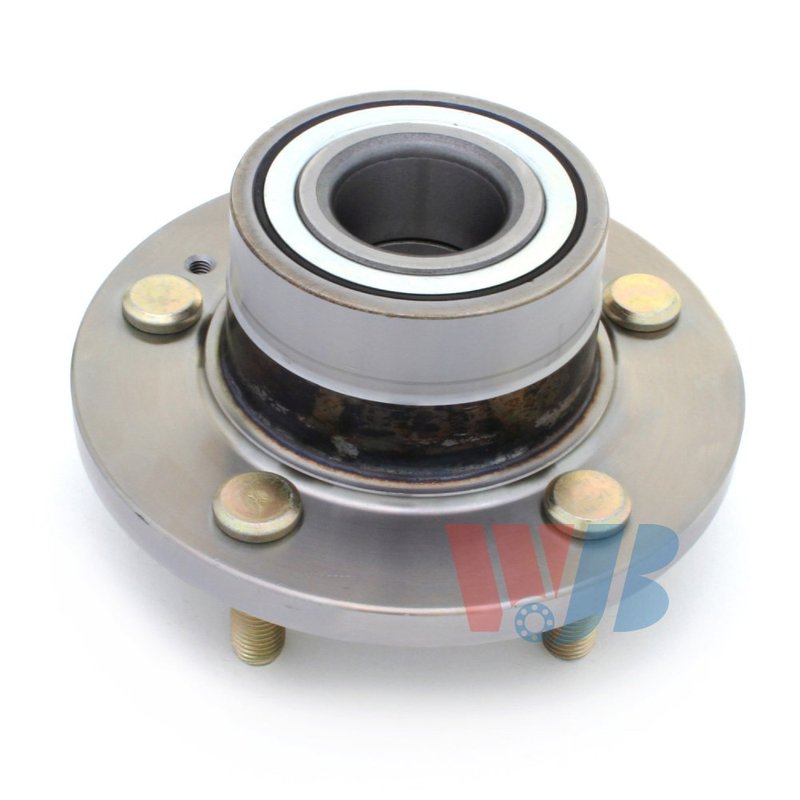

InMotion WA512197 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Hyundai Santa Fe

InMotion WA512197 is a rear wheel bearing and hub assembly built for 2001-2006 Hyundai Santa Fe models with standard grade fitment. Engineered from OE data and measurements, this rear hub assembly is made to match the original application for proper fit, performance, and service life.

Use WA512197 when you need a direct replacement rear hub for a Hyundai Santa Fe, with the correct bolt pattern, pilot dimensions, and wheel stud count for the listed vehicles.

Key Features

• Fits 2001-2006 Hyundai Santa Fe, rear, standard grade
• Part number WA512197 for easy identification and ordering
• 5 wheel studs with a 114.3 mm bolt circle diameter (4.5 in.)
• Wheel pilot diameter: 67.0 mm
• Brake pilot diameter: 76.0 mm
• Hub pilot diameter: 78.0 mm
• Flange diameter: 148.0 mm with 56.2 mm flange offset
• ABS sensor not included

Detailed Description

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards. WA512197 is designed as an OE-style rear replacement for the Hyundai Santa Fe, helping restore correct wheel mounting, hub alignment, and bearing support for the specified model years. The dimensions and OE-based engineering support accurate installation on 2001, 2002, 2003, 2004, 2005, and 2006 Hyundai Santa Fe rear applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Reasons

• Wheel bearing noise from the rear of the vehicle
• Excessive wheel play or looseness at the hub
• Uneven wheel mounting caused by hub wear
• Vibration or roughness from a worn rear hub assembly
• Replacement after hub or bearing damage on a Hyundai Santa Fe

Installation Notes

Confirm rear fitment before ordering: WA512197 is for 2001-2006 Hyundai Santa Fe, rear, standard grade. Verify the bolt circle, pilot diameters, and wheel stud count against the original part before installation. Because the ABS sensor is not included, reuse or source the correct sensor setup as required by the vehicle.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements to support correct fitment and long-term service. Each unit is produced under strict quality-control criteria for the listed Hyundai Santa Fe rear applications.
