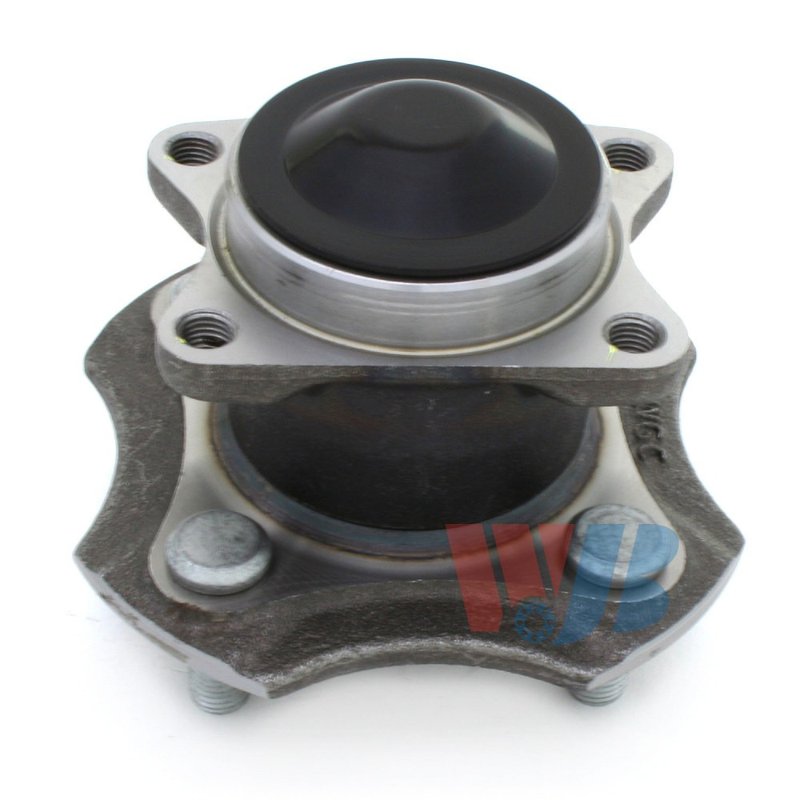

InMotion WA512210 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Toyota Echo

InMotion WA512210 is a rear wheel bearing and hub assembly built for 2000-2005 Toyota Echo Standard Grade applications. It is engineered from OE data and measurements to match the original fit, helping restore proper wheel support and hub function on the rear axle.

• Fits 2000-2005 Toyota Echo, rear
• Part number: WA512210
• 4 flange bolt holes and 4 wheel studs
• Bolt circle diameter: 100.0 mm / 3.94 in
• Wheel pilot diameter: 54.0 mm
• Brake pilot diameter: 55.0 mm
• Hub pilot diameter: 67.0 mm
• Flange diameter: 135.0 mm with offset trapezoid flange shape
• Anti-lock brake sensor not included

Built to OE Dimensions

This InMotion wheel bearing and hub assembly is manufactured with precision processes and strict quality-control standards. The WA512210 is a direct replacement style part for the rear of the Toyota Echo, using application-specific dimensions to support correct wheel mounting, brake alignment, and hub seating. If you are searching for a rear wheel bearing hub assembly for a 2000-2005 Toyota Echo, WA512210 provides the key OE-style measurements needed for a proper replacement.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems It Can Address

• Wheel play or looseness at the rear hub
• Noise from a worn rear wheel bearing
• Improper wheel seating caused by hub wear
• Brake rotor alignment issues related to hub damage
• Vibration from a deteriorated rear hub assembly

Installation Notes

Confirm rear fitment before ordering and verify the bolt circle, pilot diameters, and stud count against the original part. Because the anti-lock brake sensor is not included, reuse or transfer the existing sensor setup if your vehicle uses one. For best results, inspect related rear suspension and brake components during installation and torque all fasteners to factory specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support fitment, performance, and service life.
