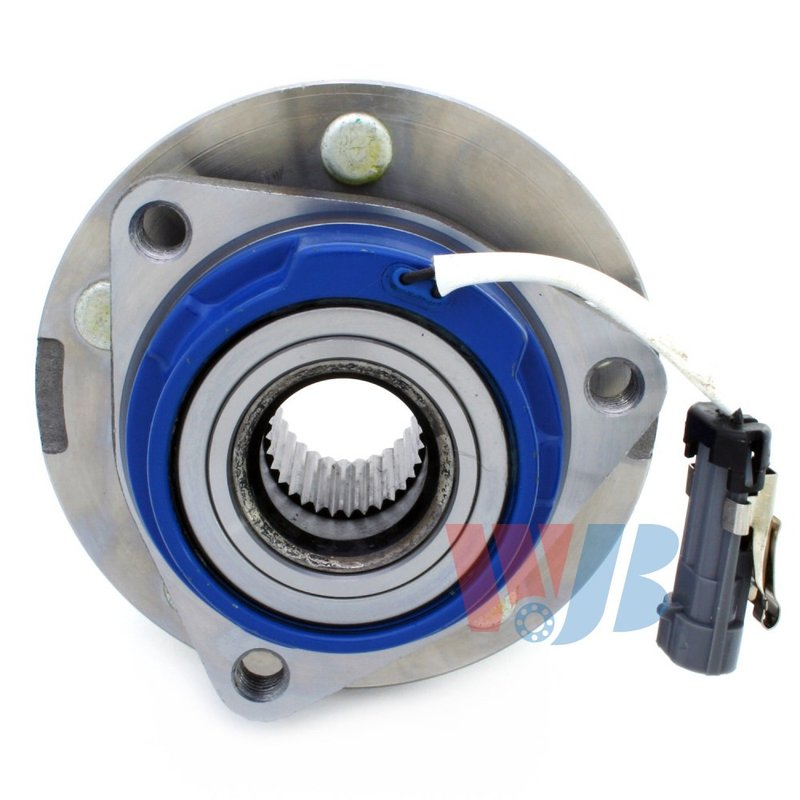

InMotion WA512223 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Cadillac CTS and STS

InMotion WA512223 is a rear wheel bearing and hub assembly built for direct replacement on select Cadillac applications. It is engineered from OE data and measurements to support proper fitment, wheel mounting, and long-term service on the rear axle.

• Fits 2003-2007 Cadillac CTS, rear
• Fits 2005-2011 Cadillac STS, rear
• 30-spline hub design
• 5 wheel studs with 3 flange bolt holes
• ABS sensor included
• Triangular flange shape with 145.5 flange diameter
• Wheel pilot diameter: 70.1; brake pilot diameter: 70.6
• Hub pilot diameter: 91.3; flange offset: 42.1
• Bolt circle diameter: 115.0 mm / 4.53 in

OE-Style Fit and Construction

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards. The WA512223 is built for the rear position and follows OE specifications for the Cadillac CTS and Cadillac STS, helping maintain correct wheel location, sensor integration, and hub geometry. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Uses

• Rear wheel bearing noise or roughness
• Excessive wheel play at the hub
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting or hub fitment issues
• Service replacement for worn rear hub components on Cadillac CTS and STS

Installation Notes

Verify rear-position fitment before ordering and confirm the wheel stud count, bolt circle, and pilot diameters against the original part. Because the ABS sensor is included, inspect the connector and wiring during installation to ensure proper system operation. Always torque fasteners to the vehicle manufacturer’s specifications and check wheel bearing preload and hub seating after installation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fitment and service life. Part number WA512223 is intended as a direct replacement for the original rear hub assembly on listed Cadillac CTS and Cadillac STS applications.
