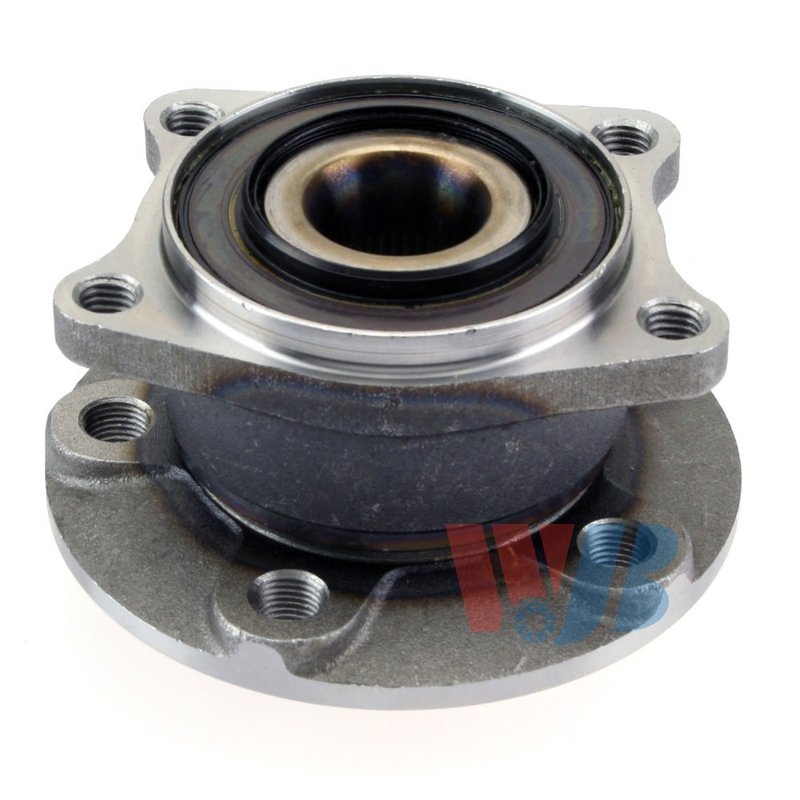

InMotion WA512253 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Volvo

The InMotion WA512253 is a rear wheel bearing and hub assembly built for specific Volvo applications with OE-based measurements for fit and function. It is engineered as a direct replacement for the original rear hub on select Volvo S60, V70, XC70, and S80 models.

• Rear wheel bearing and hub assembly
• 36-spline design
• 5 wheel studs
• 4 flange bolt holes
• ABS sensor included
• OE-data-based dimensions for fitment and longevity
• Flange diameter: 135.7 mm
• Bolt circle diameter: 108.0 mm
• Wheel pilot diameter: 65.0 mm
• Brake pilot diameter: 68.0 mm
• Hub pilot diameter: 54.0 mm
• Flange offset: 58.8 mm

Fitment Details

• Fits 2002-2009 Volvo S60, rear, Standard Grade
• Fits 2001-2007 Volvo V70, rear, Standard Grade
• Fits 2003-2007 Volvo XC70, rear, Standard Grade
• Fits 2004-2006 Volvo S80, rear, Standard Grade

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness
• ABS warning light caused by a failing hub sensor assembly
• Uneven rear wheel rotation or vibration
• Hub wear on high-mileage Volvo S60, V70, XC70, or S80 vehicles

Installation Notes

Verify rear axle fitment, spline count, bolt pattern, and sensor configuration before installation. Compare the original hub dimensions to the listed measurements, including the 108.0 mm bolt circle and 5-stud flange layout, to confirm proper match for the vehicle.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA512253 is built from OE data and measurements to support correct fitment, consistent performance, and service life on the specified Volvo rear applications.
