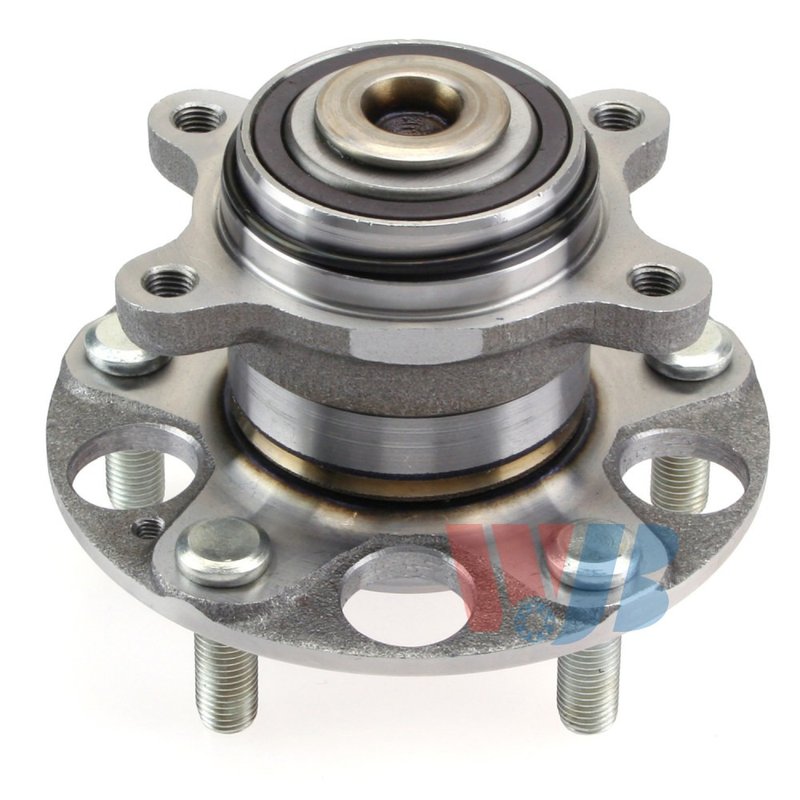

InMotion WA512257HD Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Civic

InMotion WA512257HD is a rear wheel bearing and hub assembly built for 2006-2011 Honda Civic applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

For Honda Civic rear service, WA512257HD provides the dimensional accuracy needed for proper wheel mounting, brake alignment, and sensor operation. The assembly is manufactured with controlled quality standards and precision machining to support consistent fitment on the designated vehicle range.

Key Features

• Direct replacement wheel bearing and hub assembly for the rear position
• Fits 2006-2011 Honda Civic, rear
• ABS sensor included for vehicles equipped with wheel speed sensing
• OE-based design for fitment, performance, and service life
• 5 wheel studs with 4-bolt flange hole pattern
• Flange shape: modified
• Wheel pilot diameter: 62.8 mm
• Brake pilot diameter: 64.1 mm
• Hub pilot diameter: 69.9 mm
• Bolt circle diameter: 114.3 mm / 4.5 in
• Part number WA512257HD

Detailed Description

This InMotion wheel bearing and hub assembly is designed for the rear of the 2006-2011 Honda Civic and is built to match OE dimensions for a direct-fit replacement. The assembly uses a 5-stud hub layout, a 114.3 mm bolt circle, and a modified flange profile to align with the original mounting geometry. WA512257HD also includes the ABS sensor, which is important for maintaining wheel speed signal function on equipped vehicles. If you are replacing a worn rear hub on a Honda Civic, WA512257HD offers a precise service part for restoring proper wheel support and mounting accuracy.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed wheel speed sensor assembly
• Uneven brake rotor seating from hub wear or distortion
• Vibration or instability related to hub bearing deterioration

Installation Notes and Tips

Confirm rear-position fitment before ordering: Fits 2006-2011 Honda Civic, rear. Verify the bolt circle, stud count, pilot diameters, and ABS sensor configuration against the removed part before installation. Clean the mounting surface thoroughly and inspect related brake and suspension components while the hub is removed. WA512257HD is listed for the rear position only.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. The part is engineered from OE data and measurements to support correct fitment and long-term service on the specified Honda Civic applications. Part number WA512257HD is built as a direct replacement for the original rear hub assembly.
