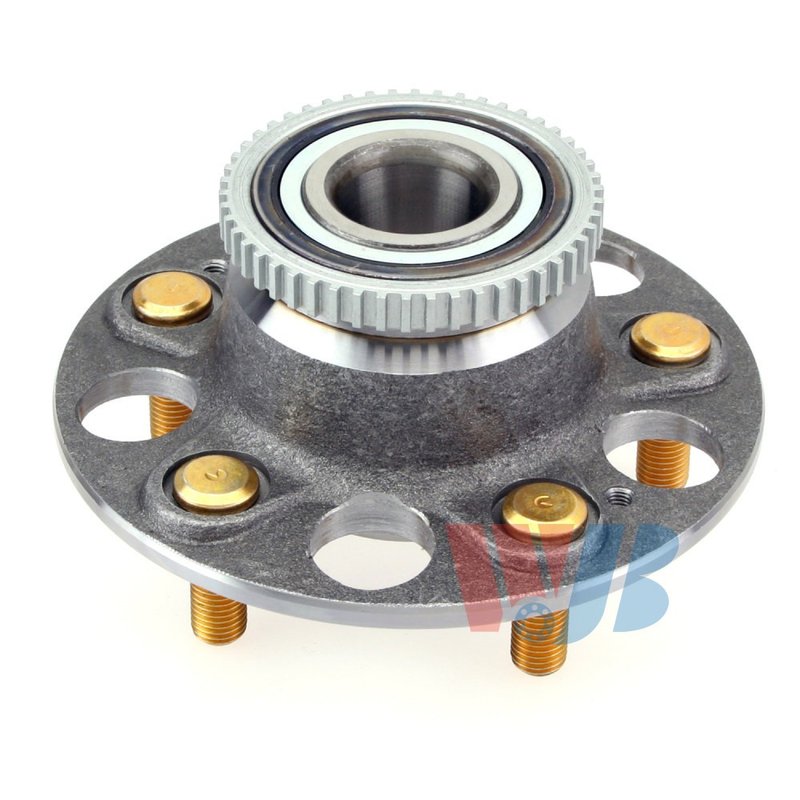

InMotion WA512259 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing and Hub Assembly

InMotion WA512259 is a rear wheel bearing and hub assembly built for precise OE-style fitment and dependable wheel support. It is engineered for 2002-2006 Acura RSX and 2004-2005 Honda Civic rear applications, with integrated ABS sensor provision for vehicles equipped with anti-lock braking.

Use WA512259 when you need a direct replacement rear hub assembly for Acura RSX or Honda Civic models listed below. The design follows OE data and measurements to help maintain correct fit, wheel mounting accuracy, and long-term service life.

Key Features

• Rear wheel bearing and hub assembly for driveline and axle service
• Fits 2002-2006 Acura RSX, rear, Standard Grade
• Fits 2004-2005 Honda Civic, rear, Standard Grade
• 5-wheel-stud hub design
• ABS sensor included
• Wheel pilot diameter: 63.0 mm
• Brake pilot diameter: 64.1 mm
• Flange diameter: 151.8 mm
• Bolt circle diameter: 118.0 mm

Detailed Description

InMotion WA512259 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions for the specified rear applications. The hub is built using OE data and measurements, helping ensure proper wheel seating, brake interface alignment, and consistent bearing performance on 2002-2006 Acura RSX and 2004-2005 Honda Civic rear positions. For shoppers searching for a rear wheel bearing hub assembly for Acura RSX or a rear hub assembly for Honda Civic, WA512259 provides the correct application-specific configuration.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Wheel play or looseness at the rear hub
• Noise from a worn rear wheel bearing assembly
• ABS warning light caused by a failing hub sensor setup
• Improper wheel mounting due to hub wear or damage
• Vibration or uneven rotation from a deteriorated rear hub

Installation Notes and Tips

Confirm rear fitment by year, make, model, and Standard Grade application before installation. Inspect the mating surfaces, axle area, and brake components for wear or damage during replacement. Because the ABS sensor is included, verify connector routing and sensor alignment during installation. Torque wheel fasteners to the vehicle manufacturer’s specification after installation.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control criteria and to OE-based measurements for fitment, performance, and longevity. The part number WA512259 is built as a direct replacement for the listed rear applications.
