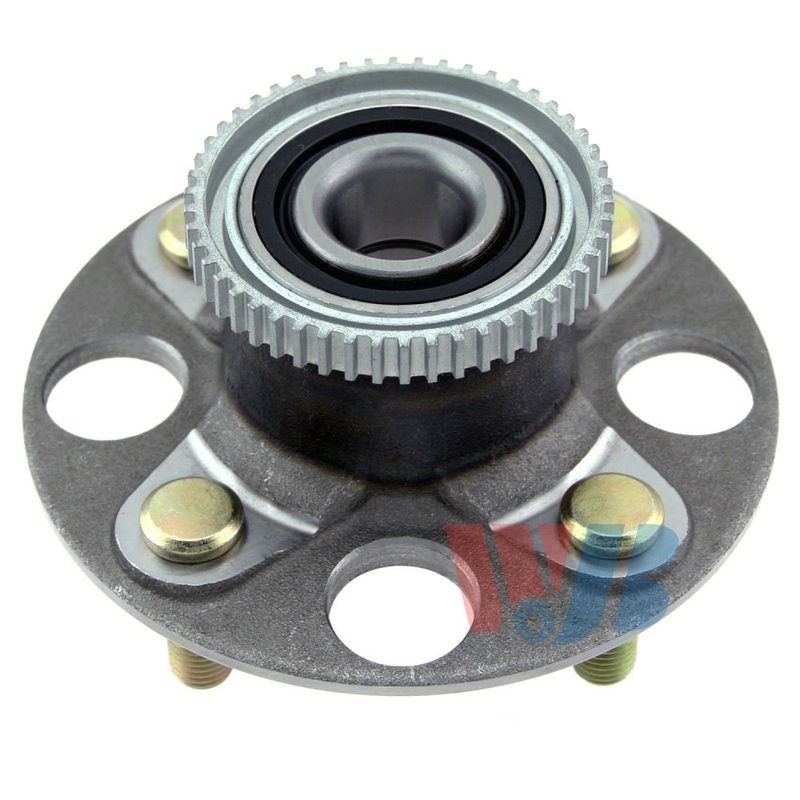

InMotion WA512264 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Honda Insight

InMotion WA512264 is a rear wheel bearing and hub assembly built for 2000-2006 Honda Insight models. It is engineered from OE data and measurements for direct replacement fitment, with the precision needed for consistent wheel support and ABS system operation.

This rear hub assembly for Honda Insight applications is a practical choice when you need a replacement that matches the original mounting and sensor requirements. The InMotion WA512264 is made for the rear position and includes the ABS sensor.

Key Features

• Fits 2000-2006 Honda Insight, rear
• Wheel bearing and hub assembly for driveline and axle service
• Anti-lock brake sensor included
• 4 wheel studs
• Wheel pilot diameter: 61.0 mm
• Brake pilot diameter: 61.0 mm
• Flange diameter: 134.0 mm
• Bolt circle diameter: 100.0 mm
• Part number: WA512264

Detailed Description

InMotion WA512264 is manufactured as a direct replacement rear hub assembly for the Honda Insight, using OE-based dimensions to support proper fitment, wheel location, and service life. The hub is built with a 61.0 mm wheel pilot diameter, 61.0 mm brake pilot diameter, a 134.0 mm flange diameter, and a 100.0 mm bolt circle diameter, along with four wheel studs for the specified application. The included ABS sensor helps maintain the original wheel-speed sensing setup on 2000-2006 Honda Insight rear axle service.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application. If you are replacing a worn rear wheel bearing and hub assembly on a Honda Insight, WA512264 provides the fitment and sensor configuration needed for a straightforward OE-style repair.

Common Repair Symptoms

• Rear wheel noise from a worn hub or bearing
• ABS warning light caused by hub sensor issues
• Wheel play or looseness at the rear axle
• Uneven braking feel from a damaged hub assembly
• Vibration or rough rotation from bearing wear

Installation Notes

Confirm rear-position fitment before installation and verify the wheel stud pattern, pilot diameters, and ABS sensor connection against the original part. Clean the mounting surface, inspect related hardware and brake components, and torque fasteners to Honda service specifications. After installation, check wheel rotation, ABS operation, and any diagnostic codes before returning the vehicle to service.

Quality Assurance

InMotion manufactures these hub assemblies with strict quality-control criteria and OE data-based engineering for fit, performance, and longevity. WA512264 is built for the designated 2000-2006 Honda Insight rear application and is intended as a direct replacement for the original part.
