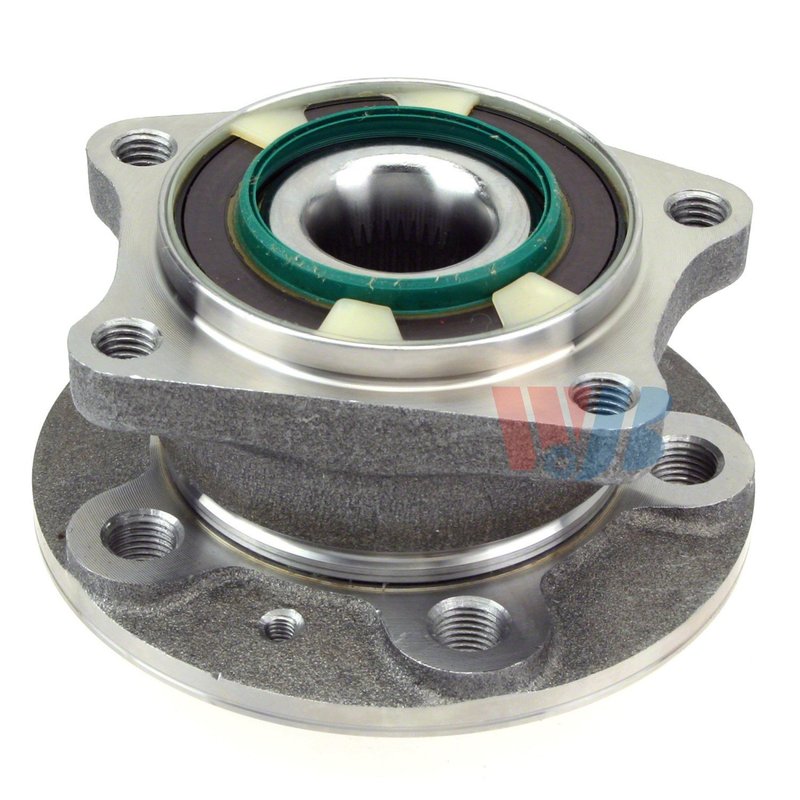

InMotion WA512273 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Volvo XC90

InMotion WA512273 is a rear wheel bearing and hub assembly built for 2003-2014 Volvo XC90 models with standard grade fitment. It is engineered from OE data and measurements to match the original application, with the hub, bearing, and ABS sensor integration needed for a direct replacement.

Key Features

• Fits 2003-2014 Volvo XC90, rear, standard grade
• Part number WA512273 for application-specific ordering
• 36-spline hub design
• 5 wheel studs and 4 flange bolt holes
• ABS sensor included
• Flange offset: 59.0 mm
• Flange diameter: 135.8 mm
• Bolt circle diameter: 108.0 mm / 4.229 in
• Wheel pilot diameter: 66.9 mm
• Brake pilot diameter: 68.0 mm
• Hub pilot diameter: 87.4 mm
• Trapezoid flange shape

Detailed Description

InMotion WA512273 is a rear wheel bearing and hub assembly for the Volvo XC90, designed as a direct replacement for the original rear hub on 2003-2014 vehicles. The assembly is manufactured with high-precision processes and strict quality-control standards, using OE data and measurements to support correct fitment, bearing performance, and service life. For buyers searching for a rear wheel hub assembly for Volvo XC90, WA512273 provides the key dimensions and sensor integration needed for a proper repair.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Rear wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor
• Wheel play from worn hub and bearing components
• Uneven rear wheel stability from hub wear
• Service replacement for a damaged rear hub assembly

Installation Notes and Tips

Confirm rear axle fitment before ordering and verify the 36-spline, 5-stud, and 4-bolt flange specifications against the removed part. Inspect the mounting surface, axle interface, and brake components during installation, and torque fasteners to the vehicle manufacturer’s specifications. Because the ABS sensor is included, check connector routing and sensor alignment during reassembly.

Quality Assurance

InMotion manufactures this hub assembly using OE-based dimensions and controlled production methods to support consistent fitment on the Volvo XC90. Part number WA512273 is built for the listed rear applications and is intended to replace the original hub assembly with the correct geometry and sensor configuration.
