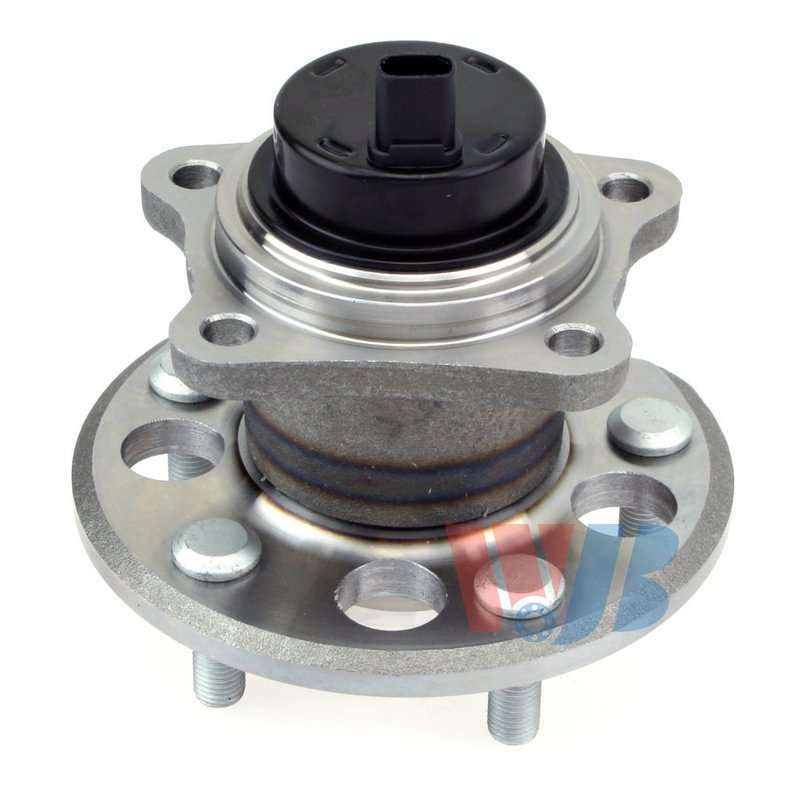

InMotion WA512280 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub for Toyota Sienna

InMotion WA512280 is a rear wheel bearing and hub assembly built for 2004-2010 Toyota Sienna Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one service part.

• Fits 2004-2010 Toyota Sienna, rear, Standard Grade
• Part number WA512280 for streamlined lookup and ordering
• Wheel stud quantity: 5
• Anti-lock brake sensor included
• Bolt circle diameter: 114.3 mm / 4.5 in
• Flange bolt hole quantity: 4
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm
• Hub pilot diameter: 83.9 mm
• Offset flange shape with 69.0 mm flange offset

OE-Style Fitment and Construction

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards to match the original application. For Toyota Sienna rear hub replacement needs, WA512280 is specified to align with OE dimensions, mounting points, and sensor integration for consistent wheel support and brake system operation.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Reasons to Replace

• Rear wheel bearing noise such as humming, growling, or rumbling
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed hub sensor
• Uneven wheel rotation or vibration from hub wear
• Corrosion or damage at the rear hub mounting surface

Installation Notes

Confirm rear fitment on the vehicle before installation and verify the 5-stud, 114.3 mm bolt pattern matches the original hub. Inspect the knuckle, axle area, and brake components for wear before assembly, and transfer only the components required by the vehicle service procedure. After installation, clear ABS fault codes if present and road test to confirm proper operation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support proper fit, performance, and service life. WA512280 is built as a direct replacement for the original rear hub assembly on listed Toyota Sienna applications.
