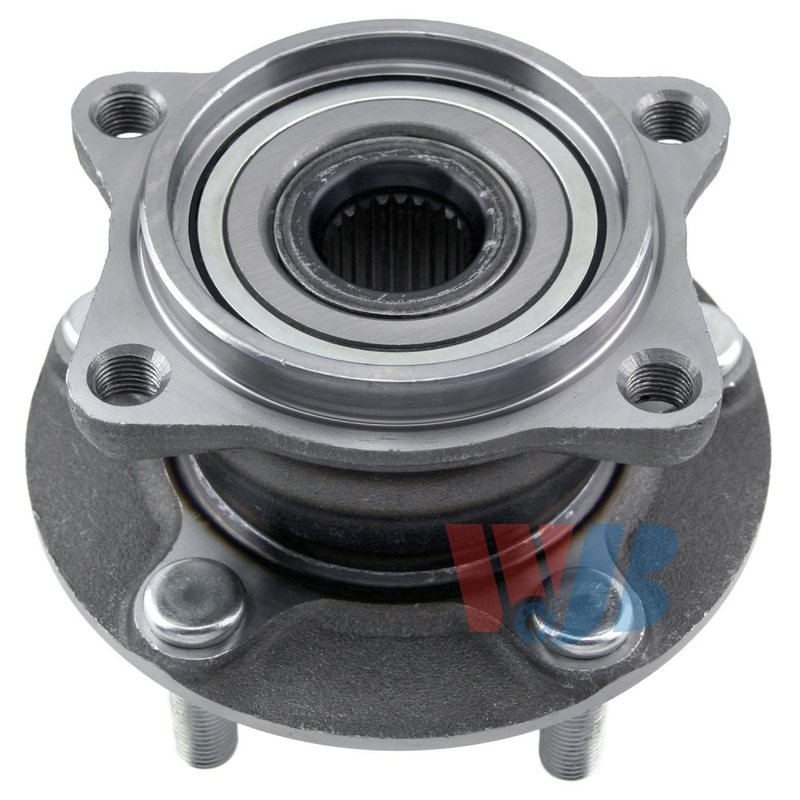

InMotion WA512291 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Mitsubishi Endeavor

InMotion WA512291 is a rear wheel bearing and hub assembly built for 2004-2008 and 2010-2011 Mitsubishi Endeavor models in Standard Grade applications. Engineered from OE data and measurements, this rear hub assembly is made for direct replacement use on the Mitsubishi Endeavor rear axle.

• Rear wheel bearing and hub assembly for Mitsubishi Endeavor
• Fits 2004-2008 Mitsubishi Endeavor, rear, Standard Grade
• Fits 2010-2011 Mitsubishi Endeavor, rear, Standard Grade
• 25-spline design with 5 wheel studs
• 4 flange bolt holes with modified flange shape
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 51.0 mm
• Brake pilot diameter: 68.9 mm
• Hub pilot diameter: 88.0 mm
• Flange offset: 59.2 mm
• Anti-lock brake sensor not included

OE-Style Fit and Construction

Part number WA512291 is manufactured with high-precision processes and strict quality-control standards to match the designated application. The hub assembly is designed around OE specifications for the Mitsubishi Endeavor rear position, helping ensure proper fitment, correct wheel mounting geometry, and consistent bearing performance. If you are replacing a worn rear hub on a Mitsubishi Endeavor, WA512291 provides the dimensional details needed for a direct-fit service part.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Rear wheel bearing noise from wear or roughness
• Wheel play or looseness at the rear hub
• Uneven wheel mounting or hub fit concerns
• ABS sensor-related service where the sensor is not part of the assembly
• Restoring proper rear wheel support on a Mitsubishi Endeavor

Installation Notes

Confirm rear fitment by year, model, and Standard Grade application before installation. Verify spline count, bolt circle, flange offset, and pilot diameters against the original hub assembly on the vehicle. Because the anti-lock brake sensor is not included, reuse or service the existing sensor components as required by the vehicle configuration.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support accurate fitment and long-term service life. Part number WA512291 is built as a direct replacement for the specified Mitsubishi Endeavor rear applications.
