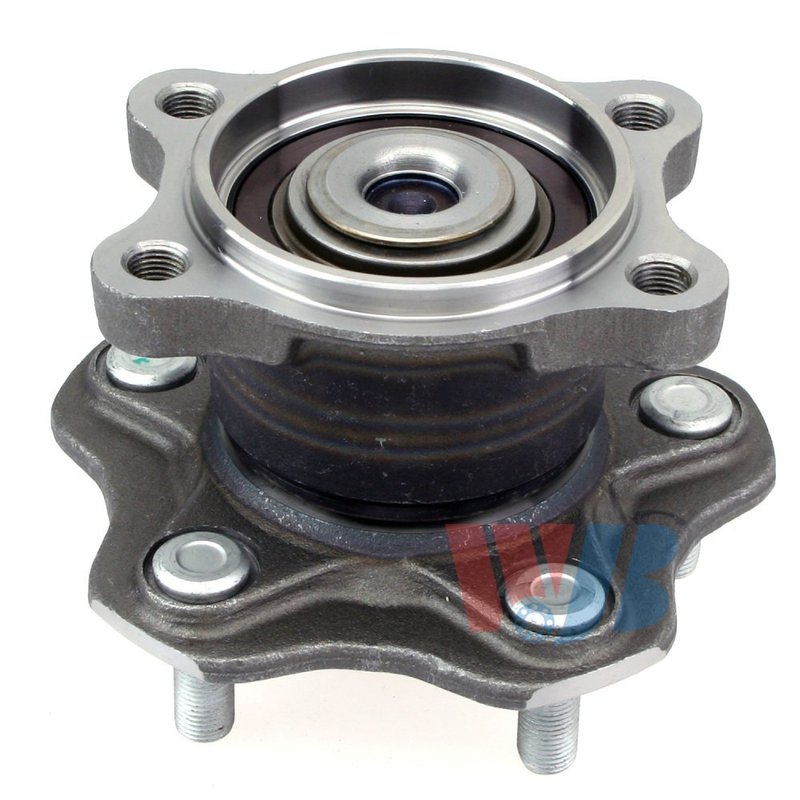

InMotion WA512292 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Nissan

InMotion WA512292 is a rear wheel bearing and hub assembly built for direct replacement on select Nissan applications. It is engineered from OE data and measurements to match the original fit, performance, and service life requirements for the vehicle.

Compatible with 2002-2006 Nissan Altima, rear; 2004-2008 Nissan Maxima, rear; and 2004-2009 Nissan Quest, rear. The WA512292 hub assembly includes an integrated ABS sensor and is built to the specified hub, flange, and bolt pattern dimensions for accurate installation.

Key Features

• Rear wheel bearing and hub assembly for select Nissan models
• Direct replacement design based on OE data and measurements
• Integrated anti-lock brake sensor included
• 5 wheel studs with 4 flange bolt holes
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 65.8 mm
• Brake pilot diameter: 67.9 mm
• Hub pilot diameter: 83.9 mm
• Flange diameter: 145.0 mm with rectangle flange shape
• Flange offset: 69.0 mm

Detailed Description

InMotion WA512292 is manufactured with high-precision processes and strict quality-control standards to deliver a rear hub assembly that matches the original application. This part number is built for 2002-2006 Nissan Altima, 2004-2008 Nissan Maxima, and 2004-2009 Nissan Quest rear positions, making it a focused OE-style replacement for common driveline and axle service needs. The WA512292 is designed around the listed hub and flange dimensions to support proper wheel mounting, brake alignment, and ABS system function.

This part cross-references no listed interchange numbers in the provided data.

What It Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive wheel play or looseness at the rear axle
• ABS warning light concerns related to hub sensor failure
• Uneven wheel mounting caused by damaged hub components
• Rear-end vibration or rough rotation from bearing wear

Installation Notes and Tips

Verify rear fitment by year, make, and model before ordering. Confirm the 5-stud, 114.3 mm / 4.5 in bolt circle and the listed pilot diameters against the original part. Because the ABS sensor is included, inspect the connector and wiring condition during installation and compare the old hub assembly to the new unit before final torqueing.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support proper fitment and consistent performance on the specified Nissan Altima, Maxima, and Quest rear applications.
