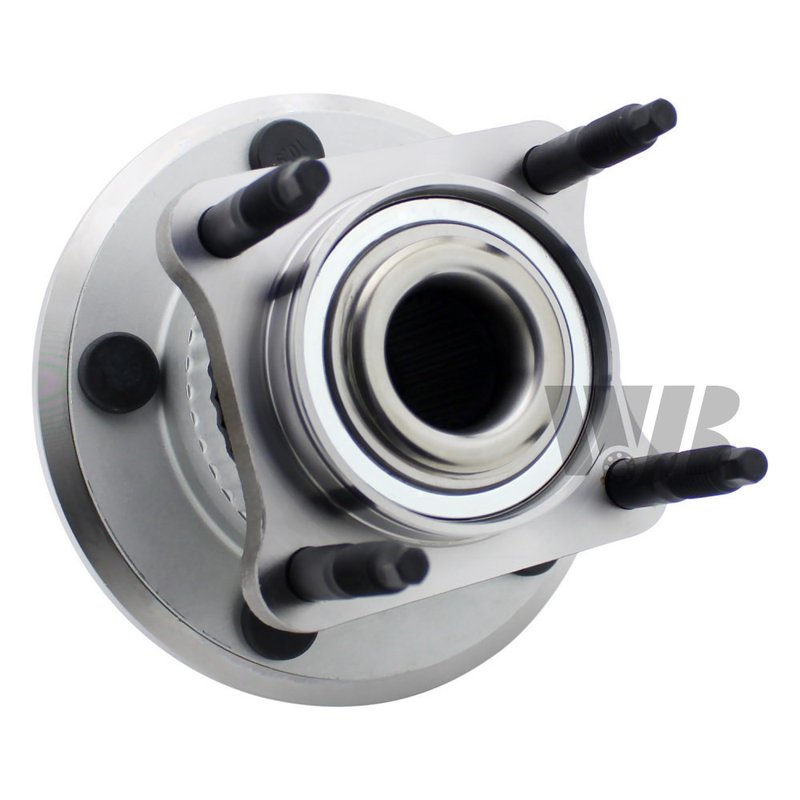

InMotion WA512302HD Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Jeep

The InMotion WA512302HD wheel bearing and hub assembly is a direct replacement for rear applications on select Jeep Commander and Jeep Grand Cherokee models. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

• Fits 2006-2010 Jeep Commander, rear
• Fits 2005-2010 Jeep Grand Cherokee, rear
• New wheel bearing and hub assembly
• Ball bearing design for rear driveline service
• Non-driven hub assembly
• ABS tone ring included; ABS sensor not included
• 5-bolt flange with 1/2"-20 thread size
• 4 mounting bolts to knuckle
• Hub pilot diameter: 71.8 mm (2.83 in.)
• Flange diameter: 165 mm (6.5 in.)

Key Features

• OE-style replacement for rear wheel hub service
• Precision-manufactured to strict quality-control criteria
• Designed for the specified Jeep Commander and Jeep Grand Cherokee rear fitments
• Includes a 48-tooth ABS tone ring
• Hub centerbore diameter: 127 mm (5 in.)
• Flange offset: 63.5 mm (2.5 in.)

Detailed Description

InMotion WA512302HD is a rear wheel bearing and hub assembly for the Jeep Commander and Jeep Grand Cherokee. It uses a ball bearing design and a circular flange shape, with OE-based dimensions to support correct alignment and dependable wheel mounting. This part cross-references MOOG 512302 for the same application.

For buyers searching for a rear wheel bearing hub assembly for 2006-2010 Jeep Commander or a rear hub assembly for 2005-2010 Jeep Grand Cherokee, WA512302HD provides the specified hub pilot diameter, flange bolt pattern, and ABS tone ring configuration needed for the listed vehicles. The assembly is non-driven and does not include an ABS sensor or wiring harness.

Common Repair Uses

• Wheel noise from a worn rear bearing
• Excessive play or looseness at the rear hub
• ABS tone ring wear affecting wheel speed signal reading
• Uneven rear wheel rotation caused by hub wear
• Rear hub replacement after corrosion or bearing failure

Installation Notes

Confirm rear fitment by year, make, and model before installation. Verify flange bolt size, hub centerbore, and ABS tone ring configuration against the original part. Because the ABS sensor is not included, reuse or replace the vehicle sensor as needed during service. Proper torque procedures and clean mounting surfaces help ensure correct hub seating and bearing performance.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control standards. Each unit is built to match the designated application using OE data and measurements for fit, performance, and durability.
