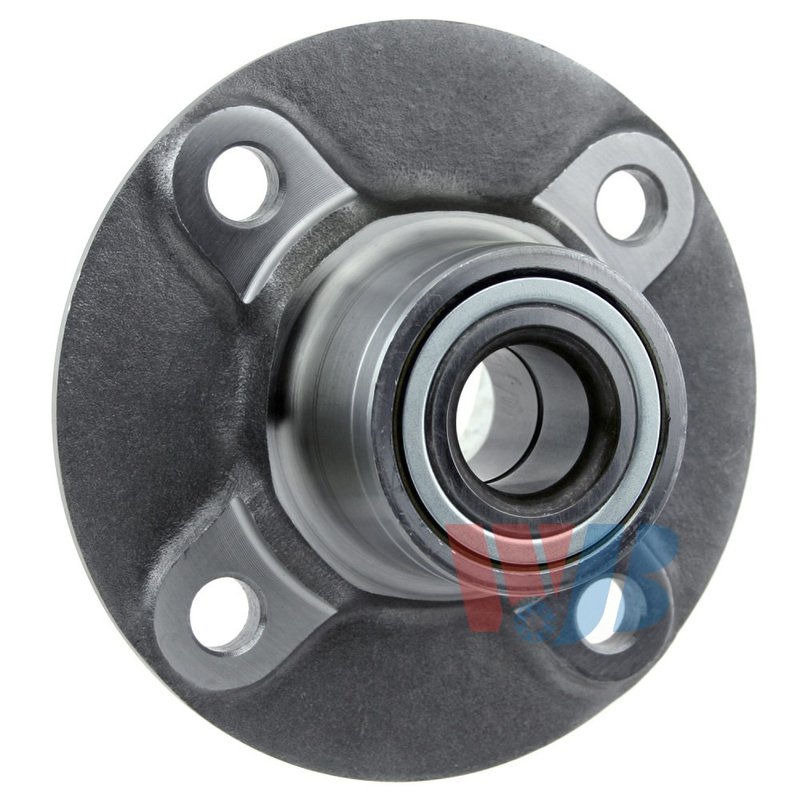

InMotion WA512303 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Sentra

InMotion WA512303 is a rear wheel bearing and hub assembly built for 2000-2006 Nissan Sentra Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub dimensions and bolt pattern matched to the original design.

Key Features

• Direct replacement rear hub assembly for Nissan Sentra
• Part number WA512303
• 4-wheel stud design with 114.3 mm bolt circle diameter
• Wheel pilot diameter: 65.9 mm
• Brake pilot diameter: 68.0 mm
• Hub pilot diameter: 63.6 mm
• Flange diameter: 148.0 mm
• ABS sensor not included

Detailed Description

InMotion WA512303 is a precision-built rear wheel bearing and hub assembly for the Nissan Sentra. It is manufactured to OE measurements so the hub, pilot diameters, flange size, and stud layout align with the original rear suspension and brake interface. For buyers searching for a rear wheel bearing hub assembly for 2000-2006 Nissan Sentra Standard Grade, this part number WA512303 provides a direct replacement format without an integrated anti-lock brake sensor.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Rear wheel play or looseness from a worn hub assembly
• Noise from a failing wheel bearing at the rear axle
• Improper wheel mounting caused by damaged studs or hub surfaces
• Brake rotor alignment issues related to hub wear
• Fitment problems when replacing the original rear hub on a Nissan Sentra

Installation Notes and Tips

Verify rear position and Standard Grade application before ordering. Confirm the 4-stud pattern, 114.3 mm bolt circle diameter, and pilot dimensions against the removed part. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle configuration requires one. Professional installation is recommended to ensure proper torque, bearing seating, and brake component alignment.

Quality Assurance

InMotion manufactures these hub assemblies with strict quality-control criteria and uses OE data and measurements to support fitment, performance, and service life. WA512303 is built as a direct replacement rear hub assembly for the specified Nissan Sentra applications.
