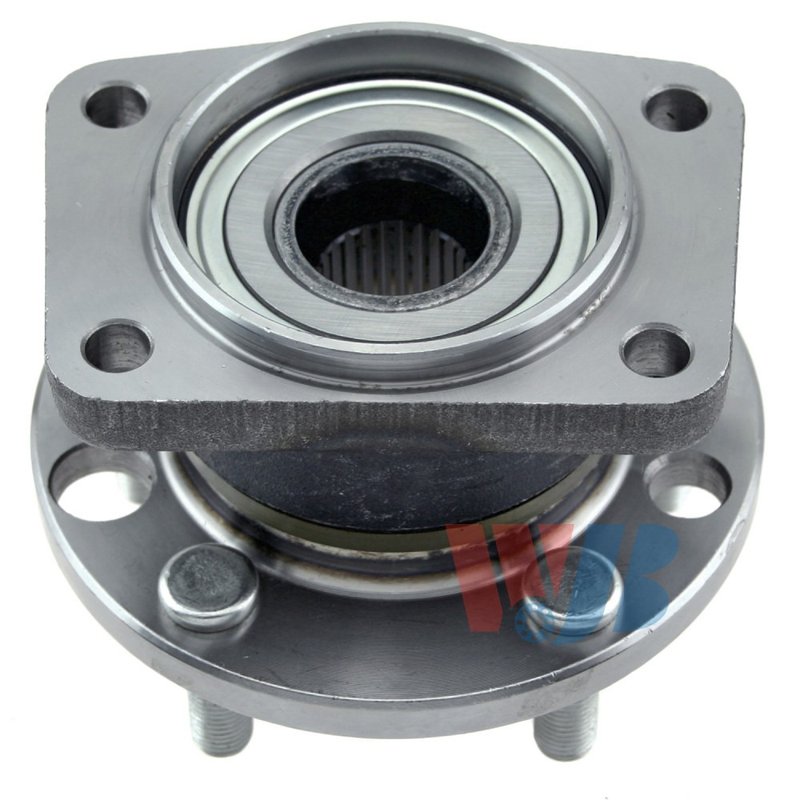

InMotion WA512306 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Jaguar X-Type

InMotion WA512306 is a rear wheel bearing and hub assembly engineered for 2002-2008 Jaguar X-Type applications. Built from OE data and measurements, it is designed as a direct replacement for the original rear hub assembly on the Jaguar X-Type, with precision manufacturing focused on fitment, performance, and service life.

• Fits 2002-2008 Jaguar X-Type, rear
• Part number: WA512306
• 55 spline quantity for the specified driveline application
• 5 wheel studs and 4 flange bolt holes
• Modified flange shape with 63.0 flange offset
• 136.0 flange diameter and 108.0 bolt circle diameter
• Wheel pilot diameter: 55.9; brake pilot diameter: 63.5; hub pilot diameter: 83.0
• Anti-lock brake sensor not included

Detailed Product Overview

This InMotion wheel bearing and hub assembly is manufactured with strict quality-control criteria and high-precision processes to match the designated rear application. For Jaguar X-Type rear service, WA512306 is built to align with OE dimensions and mounting points, helping maintain proper wheel location, hub support, and brake interface geometry. If you are sourcing a rear wheel bearing hub assembly for a 2002-2008 Jaguar X-Type, this part number WA512306 provides the application-specific dimensions needed for a direct replacement.

Common Problems This Part Can Address

• Rear hub bearing noise or rough rotation
• Wheel play caused by worn hub assembly components
• Improper wheel mounting due to damaged hub pilot or flange surfaces
• Brake fitment issues related to hub interface wear
• Service replacement for a failed rear Jaguar X-Type hub assembly

Installation Notes and Tips

Verify rear fitment by matching the vehicle year, make, model, and hub dimensions before installation. Confirm spline count, bolt circle diameter, flange offset, and pilot diameters against the original part to ensure correct alignment on the Jaguar X-Type. Because the anti-lock brake sensor is not included, transfer or source the sensor separately if your vehicle configuration requires one.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support accurate fitment and consistent performance. WA512306 is intended as a direct replacement rear wheel bearing and hub assembly for the listed Jaguar X-Type applications.
