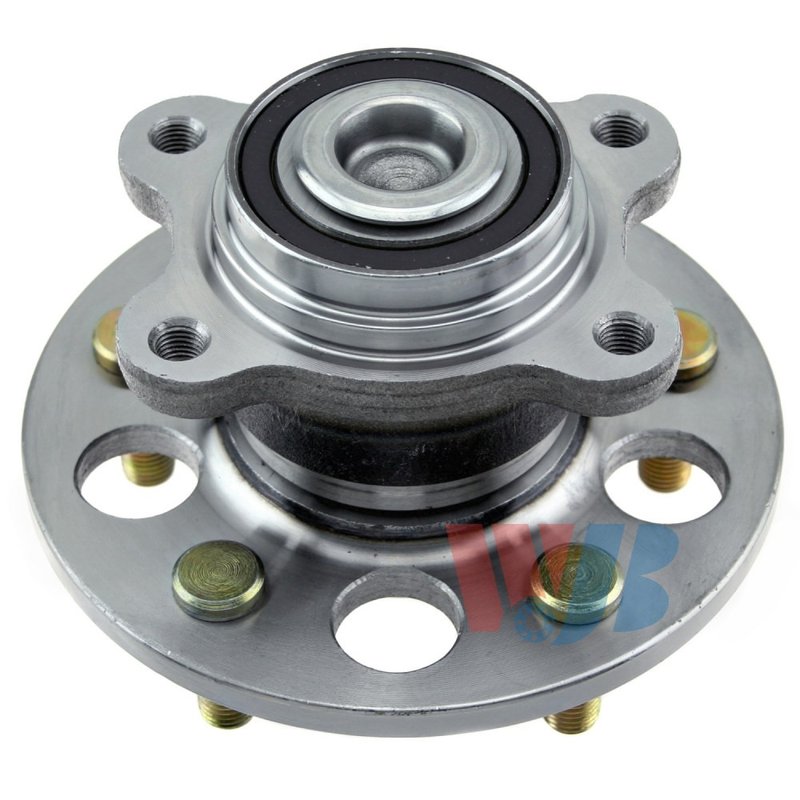

InMotion WA512322 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Civic

InMotion WA512322 is a rear wheel bearing and hub assembly built for 2006-2012 Honda Civic applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

For drivers searching for a rear wheel bearing hub assembly for 2006-2012 Honda Civic, WA512322 provides the correct application-specific dimensions and mounting layout. The part number WA512322 is built to meet the fitment and performance requirements of the designated rear position.

Key Features

• Direct replacement wheel bearing and hub assembly for the rear position
• Fits 2006-2012 Honda Civic, rear
• ABS sensor included for vehicles equipped with wheel speed sensing at the hub
• 5 wheel studs with a 4-bolt flange pattern
• 114.3 mm / 4.5 in bolt circle diameter
• 64.0 mm wheel pilot diameter and 64.0 mm hub pilot diameter
• 70.0 mm brake pilot diameter
• Modified flange shape with 58.5 mm flange offset
• Built using OE data and measurements for application-specific fitment

Detailed Description

InMotion WA512322 is a rear wheel bearing and hub assembly designed for the Honda Civic from 2006 through 2012. It is manufactured with high-precision processes and strict quality-control standards, then matched to OE dimensions to support proper installation and consistent operation. The assembly includes the ABS sensor and uses a 5-stud hub layout with a 114.3 mm bolt circle, making it a direct-fit replacement for the designated rear application. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What It Helps Address

• Rear wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light concerns related to the hub sensor
• Uneven wheel mounting caused by worn hub components
• Restoration of proper rear wheel support on a Honda Civic

Installation Notes and Tips

Confirm rear-position fitment before installation and verify the wheel stud count, bolt circle diameter, and pilot dimensions against the original part. Inspect the knuckle, axle area, and mounting surfaces for wear or damage before pressing or bolting the assembly into place. After installation, check wheel torque and verify ABS system operation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support correct fitment and long service life. WA512322 is built as a direct replacement for the original rear hub assembly on listed Honda Civic applications.
