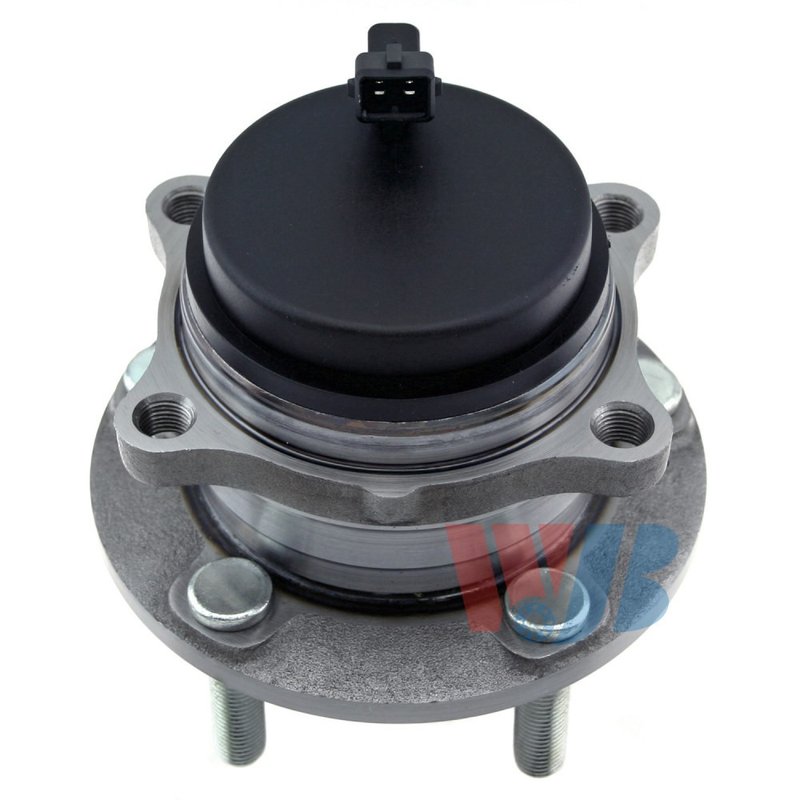

InMotion WA512326HD Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Hyundai and Kia

The InMotion WA512326HD is a new rear wheel bearing and hub assembly built for direct replacement service on select Hyundai and Kia vehicles. It uses OE data and measurements for fitment, with a ball bearing design, integrated ABS sensor, and tone ring construction for consistent wheel-speed signal performance.

Key Features

• Part number: WA512326HD
• New wheel bearing and hub assembly
• Ball bearing type for rear driveline service
• Integrated ABS sensor included
• Tone ring with 52 teeth
• 5-bolt flange design with 4 knuckle mounting bolts
• Hub pilot diameter: 69 mm (2.72 in.)
• Flange diameter: 139.4 mm (5.49 in.)
• Flange offset: 53.4 mm (2.1 in.)
• Hub centerbore diameter: 114.3 mm (4.5 in.)
• Flange bolt thread size: M12-1.5
• Lug bolt thread size: M12-1.25

Detailed Description

InMotion WA512326HD is engineered as a direct replacement rear hub assembly for 2007-2020 Hyundai Santa Fe, 2013-2019 Hyundai Santa Fe XL, 2013-2018 Hyundai Santa Fe Sport, 2011-2015 Kia Sorento, and 2007-2012 Hyundai Veracruz. It is built for non-driven rear applications and uses a precision ball bearing layout to support smooth wheel rotation and stable hub operation. The integrated ABS sensor and tone ring help maintain proper wheel-speed signal input for vehicles equipped with anti-lock braking systems. This part cross-references SKF BR930646 for the same application.

What It Helps Address

• Wheel bearing noise from a worn rear hub assembly
• ABS warning light caused by a failing hub sensor or tone ring
• Excessive wheel play or looseness at the rear wheel
• Uneven hub rotation from bearing wear
• Replacement needs after hub or sensor damage

Installation Notes and Fitment

• Fits 2007-2020 Hyundai Santa Fe, rear.
• Fits 2013-2019 Hyundai Santa Fe XL, rear.
• Fits 2013-2018 Hyundai Santa Fe Sport, rear.
• Fits 2011-2015 Kia Sorento, rear.
• Fits 2007-2012 Hyundai Veracruz, rear.

Verify flange, bolt, and sensor specifications before installation. This rear hub assembly is intended for non-driven positions and uses a 4-bolt knuckle mounting pattern with 5 flange bolts. Confirm ABS connector style and thread sizes against the original part before service. Part number WA512326HD is a direct-fit replacement for the listed applications.

Quality Assurance

Each InMotion hub assembly is manufactured with strict quality-control criteria and built from OE data and measurements to support proper fitment, performance, and service life.
