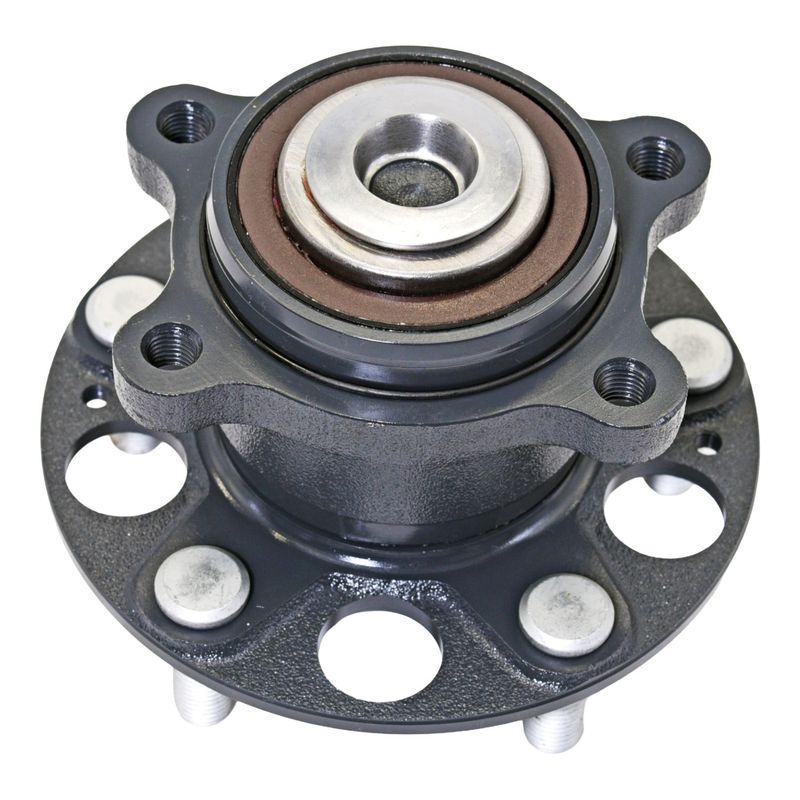

InMotion WA512327HD Wheel Bearing and Hub Assembly - Rear
| Brand | InMotion WA512327HD |
|---|---|
| Position | Rear |
| Hub Pilot Diameter | 2.52 |
| Hub Pilot Diameter | 64 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | No |
| Bearing Type | Ball |
| Flange Offset | 2.31 |
| Flange Offset | 58.8 |
| Flange Diameter | 139.19999999999999 |
| Flange Diameter | 5.48 |
| Abs Ring Type | Magnetic encoder |
| Driven Or Non-driven | Non-driven |
| Flange Bolt Size (in) | 0.47 |
| Flange Bolt Size (mm) | 12 |
| Flange Bolt Thread Size | M12-1.5 |
| Hub Centerbore Diameter (in) | 4.5 |
| Hub Centerbore Diameter (mm) | 114.3 |
| Lug Bolt Thread Size | M10-1.25 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 86 |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Wiring Harness Included | No |
| Fits | Acura and Honda · 8 vehicles |
OE-data based. Engineered from application measurements for accurate fit and performance.
Ball bearing design. Built for smooth wheel support in a new hub assembly.
Magnetic encoder ring. Includes 86 teeth for ABS signal integration.
Cross-references MOOG Hub Assemblies 512327, SKF BR930607 and Timken HA590019 for the same application. See all 4.
Wheel Bearing Hub Assembly Overview
The InMotion WA512327HD wheel bearing and hub assembly is a new, OE-data-based replacement for select rear applications. It is built with precision manufacturing and strict quality control to support proper fit, smooth operation, and long service life.
- Direct replacement-style wheel bearing and hub assembly for designated applications
- Ball bearing construction for consistent wheel support
- Magnetic encoder ABS ring with 86 teeth
- Non-driven hub design with a 4-bolt knuckle mounting pattern
- New assembly built from OE measurements and application data
Fitment Details
Compatible With rear applications on 2004-2008 Acura TSX and 2005-2007 Honda Accord. Fits 2004-2008 Acura TSX, rear. Fits 2005-2007 Honda Accord, rear. Part number WA512327HD is referenced for these applications and may also cross-reference 42200SEA951, 512327, BR930607, and HA590019.
Product Use
- Wheel bearing noise from a worn hub assembly
- Excessive wheel play or looseness at the hub
- ABS warning concerns related to the encoder ring
- Uneven wheel rotation caused by bearing wear
Installation Notes
Verify hub pilot diameter, flange offset, flange diameter, bolt thread sizes, and lug bolt thread size before installation. This assembly uses a magnetic encoder and does not include an ABS sensor or wiring harness. Confirm rear fitment and non-driven application details before service.
Quality Assurance
WA512327HD is manufactured using OE data and measurements and produced under strict quality-control criteria. The part is engineered for the specified applications to support fitment, performance, and longevity.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Acura | TSX | — | Rear | Premium Grade |
| 2007 | Acura | TSX | — | Rear | Premium Grade |
| 2007 | Honda | Accord | FULL HYBRID EV-GAS (FHEV) | Rear | Premium Grade |
| 2006 | Acura | TSX | — | Rear | Premium Grade |
| 2006 | Honda | Accord | FULL HYBRID EV-GAS (FHEV) | Rear | Premium Grade |
| 2005 | Acura | TSX | — | Rear | Premium Grade |
| 2005 | Honda | Accord | FULL HYBRID EV-GAS (FHEV) | Rear | Premium Grade |
| 2004 | Acura | TSX | — | Rear | Premium Grade |
| No rows match your filter. | |||||
