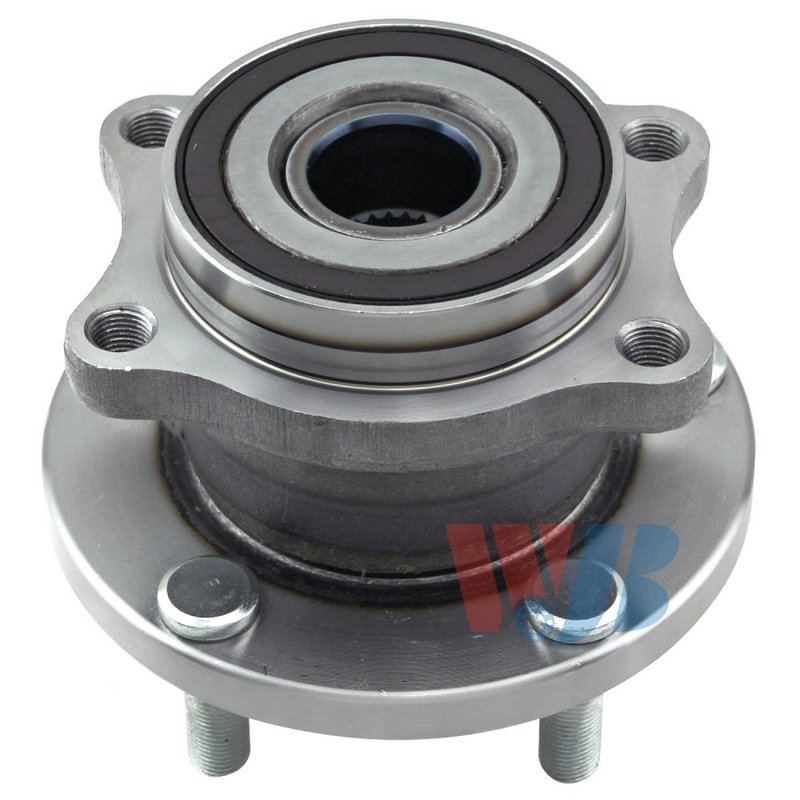

InMotion WA512328 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Subaru Tribeca

Restore rear wheel support and hub performance with this InMotion wheel bearing and hub assembly, part number WA512328. It is engineered from OE data and measurements for direct replacement fitment on select Subaru Tribeca and Subaru B9 Tribeca rear applications.

• Direct replacement rear wheel bearing and hub assembly
• Precision-built using OE data and dimensional measurements
• Designed for 5-wheel-stud applications with a 4-bolt flange
• 27-spline design for the specified driveline application
• Modified flange shape with 138.0 mm flange diameter
• Hub pilot diameter: 84.0 mm
• Wheel pilot diameter: 56.0 mm
• Brake pilot diameter: 58.0 mm
• Bolt circle diameter: 114.3 mm / 4.5 in
• Anti-lock brake sensor not included

Fitment Details

Compatible with rear applications on the following vehicles:

• Fits 2008-2014 Subaru Tribeca, rear, Standard Grade
• Fits 2006-2007 Subaru B9 Tribeca, rear, Standard Grade

Product Description

InMotion WA512328 is a rear wheel bearing and hub assembly built for precise OE-style replacement on Subaru Tribeca and Subaru B9 Tribeca models. The assembly is manufactured with strict quality-control criteria and uses application-specific engineering to match the original fit, performance requirements, and service dimensions of the factory part. Key specifications include a 27-spline hub, 5 wheel studs, 4 flange bolt holes, and a 114.3 mm bolt circle diameter, making it a direct-fit solution for the listed rear positions.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness
• Uneven hub wear at the rear axle
• Vibration or roughness from the wheel end
• Service replacement after hub or bearing damage

Installation Notes

Verify rear fitment by year, model, and position before installation. Confirm the hub pilot, wheel pilot, brake pilot, spline count, and bolt pattern match the original component on your Subaru Tribeca or Subaru B9 Tribeca. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle requires one.

Quality Assurance

Each InMotion WA512328 hub assembly is produced with high-precision manufacturing methods and inspected under strict quality-control standards. The part is engineered to follow OE data and measurements for consistent fitment, performance, and service life in the specified rear applications.
