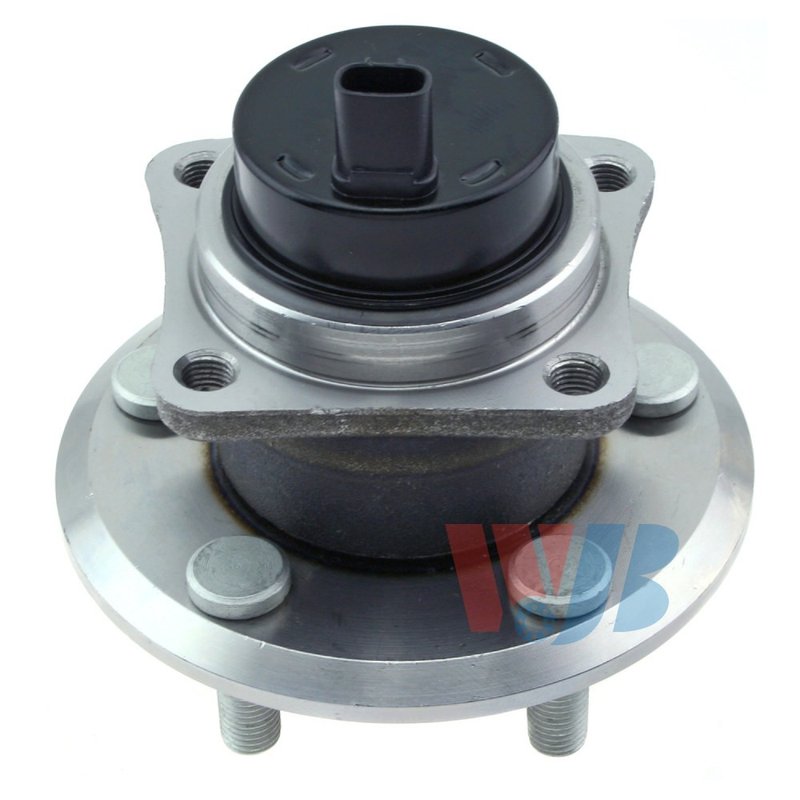

InMotion WA512329 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Scion tC and Toyota Celica

InMotion WA512329 is a rear wheel bearing and hub assembly built for direct replacement on select Scion tC and Toyota Celica applications. It is engineered from OE data and measurements to support proper fitment, stable wheel mounting, and long service life.

Key Features

• Rear wheel bearing and hub assembly for 2005-2010 Scion tC and 2000-2005 Toyota Celica
• Direct replacement design based on OE dimensions
• Precision-manufactured using strict quality-control criteria
• Includes ABS sensor provision with sensor included
• 5 wheel studs, 4 flange bolt holes, and a modified flange shape
• Bolt circle diameter: 100.0 mm (3.937 in)
• Flange diameter: 135.0 mm; flange offset: 54.5 mm
• Wheel pilot diameter: 54.0 mm; brake pilot diameter: 55.0 mm; hub pilot diameter: 74.0 mm

Detailed Description

InMotion WA512329 is a rear hub assembly designed for vehicles that require accurate wheel bearing support and OE-style fitment. It is built for the rear position on 2005-2010 Scion tC and 2000-2005 Toyota Celica models, including standard grade applications. The assembly uses OE-based measurements to help maintain correct wheel location, hub alignment, and brake interface dimensions. If you are replacing a worn rear hub on a Scion tC or Toyota Celica, WA512329 provides the specified stud count, bolt pattern, and pilot dimensions needed for a proper installation.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness
• ABS warning light related to hub sensor failure
• Uneven brake rotor contact from hub wear
• Vibration or roughness from a worn rear hub assembly

Installation Notes

Confirm rear-position fitment before ordering. Verify the bolt circle diameter, flange dimensions, pilot diameters, and wheel stud count against the original hub assembly on the vehicle. Because this assembly includes an ABS sensor, inspect the connector and tone-ring interface during installation and clear any stored fault codes after replacement. For best results, compare the old part to WA512329 before final assembly on the Scion tC or Toyota Celica.

Quality Assurance

InMotion manufactures these hub assemblies with high-precision processes and strict quality-control standards. Each unit is engineered from OE data and measurements to support correct fitment, performance, and durability for the listed applications.
