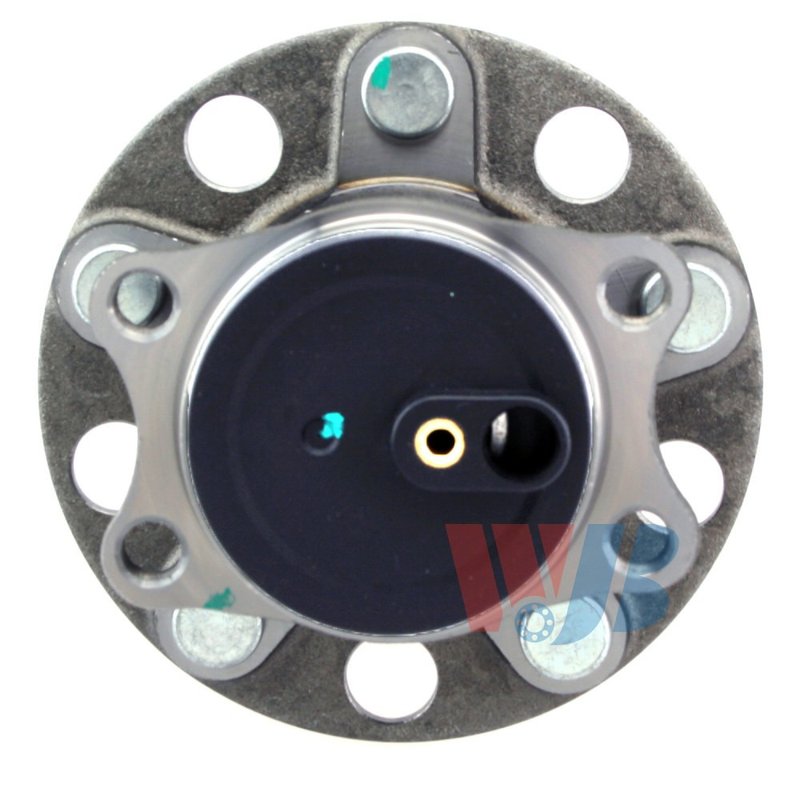

InMotion WA512332 Wheel Bearing and Hub Assembly - Rear or Rear Right

Rear Wheel Bearing Hub Assembly

InMotion WA512332 is a rear wheel bearing and hub assembly built for direct replacement service on select Jeep, Chrysler, and Dodge applications. It is engineered from OE data and measurements for proper fitment, stable performance, and long service life.

Compatible with rear applications on the Jeep Compass and Jeep Patriot, as well as the Chrysler 200, Dodge Avenger, Dodge Caliber, and Chrysler Sebring. The WA512332 also includes an integrated ABS sensor for vehicles that require wheel speed signal input at the hub.

Key Features

• Part number: WA512332
• Rear wheel bearing and hub assembly
• Integrated anti-lock brake sensor included
• 5 wheel studs
• 4 flange bolt holes
• Bolt circle diameter: 114.3 mm / 4.5 in.
• Wheel pilot diameter: 67.0 mm
• Brake pilot diameter: 80.0 mm
• Hub pilot diameter: 73.9 mm
• Flange diameter: 140.6 mm
• Flange offset: 60.6 mm
• Modified flange shape

Detailed Description

InMotion WA512332 is manufactured as a precision hub assembly using current production methods and strict quality-control standards. It is designed as a direct replacement for the original rear hub on 2007-2017 Jeep Compass, 2007-2017 Jeep Patriot, 2011-2014 Chrysler 200, 2008-2014 Dodge Avenger, 2007-2010 Dodge Caliber, 2011 Dodge Caliber rear right, and 2007-2010 Chrysler Sebring rear applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

For shoppers searching for a rear wheel bearing hub assembly for Jeep Compass rear or Dodge Caliber rear right service, WA512332 provides the OE-style dimensions needed for correct wheel mounting and brake interface. The part number WA512332 is also a useful reference when verifying replacement against the original hub assembly.

What It Helps Fix

• Wheel bearing noise from a worn rear hub assembly
• ABS warning light caused by a failed hub-mounted sensor
• Excessive wheel play or looseness at the rear axle
• Uneven wheel mounting from damaged hub flange surfaces
• Vibration or rough rotation from bearing wear

Installation Notes

Confirm rear position and vehicle-specific fitment before installation. Match the bolt circle, pilot diameters, flange dimensions, and stud count to the original part, especially on Chrysler 200 rear and Jeep Patriot rear applications. Because the ABS sensor is included, verify connector routing and sensor alignment during installation. Always follow factory service procedures and torque specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements to support accurate fitment and dependable operation. The part is produced under strict quality-control criteria for direct replacement use on the listed vehicles.
