Home› Driveline and Axles > Hubs and Related Components› InMotion WA512333HD Wheel Bearing and Hub Assembly - Rear
InMotion WA512333HD Wheel Bearing and Hub Assembly - RearOE Quality 60-Day Returns

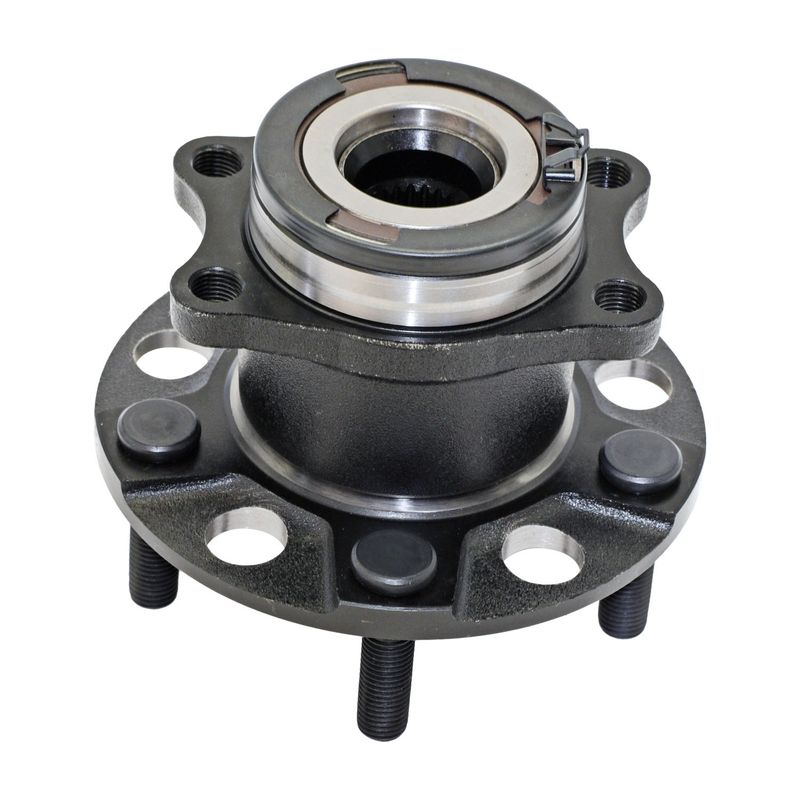

InMotion WA512333HD Wheel Bearing and Hub Assembly - Rear - view 1
InMotion WA512333HD Wheel Bearing and Hub Assembly - Rear - view 2
InMotion WA512333HD Wheel Bearing and Hub Assembly - Rear - view 3
InMotion WA512333HD Wheel Bearing and Hub Assembly - Rear - view 4
Part #: WA512333HD

InMotion WA512333HD Wheel Bearing and Hub Assembly - Rear

Rear
⚙️ 24 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$93.64Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Dodge and Jeep, Caliber, Compass, and Patriot
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WA512333HD Wheel Bearing and Hub Assembly - Rear
BrandInMotion
Part NumberWA512333HD
Spline Quantity25
Hub Pilot Diameter3.15
Hub Pilot Diameter80
Flange ShapeCircle
Anti Lock Brake Sensor IncludedNo
Bearing TypeBall
Flange Offset2.38
Flange Offset60.5
Flange Diameter140.5
Flange Diameter5.53
Abs Connector ShapeCover
Abs Ring TypeMagnetic encoder
Driven Or Non-drivenDriven
Flange Bolt Size (in)0.47
Flange Bolt Size (mm)12
Flange Bolt Thread SizeM12-1.5
Hub Centerbore Diameter (in)4.5
Hub Centerbore Diameter (mm)114.3
Lug Bolt Thread SizeM12-1.25
New Or RemanufacturedNew
Number Of Abs Sensor Ring Teeth86
Number Of Flange Bolts Included5
Number Of Lug Bolts Included0
Number Of Mounting Bolts To Knuckle4
Wiring Harness IncludedNo

This part fits 24 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2017JeepCompass4WDRearPremium Grade
2017JeepPatriot4WDRearPremium Grade
2016JeepCompass4WDRearPremium Grade
2016JeepPatriot4WDRearPremium Grade
2015JeepCompass4WDRearPremium Grade
2015JeepPatriot4WDRearPremium Grade
2014JeepCompass4WDRearPremium Grade
2014JeepPatriot4WDRearPremium Grade
2013JeepCompass4WDRearPremium Grade
2013JeepPatriot4WDRearPremium Grade
2012JeepCompass4WDRearPremium Grade
2012JeepPatriot4WDRearPremium Grade
2011JeepCompass4WDRearPremium Grade
2011JeepPatriot4WDRearPremium Grade
2010JeepCompass4WDRearPremium Grade
2010JeepPatriot4WDRearPremium Grade
2009JeepCompass4WDRearPremium Grade
2009JeepPatriot4WDRearPremium Grade
2008DodgeCaliberAWDRearPremium Grade
2008JeepCompass4WDRearPremium Grade
2008JeepPatriot4WDRearPremium Grade
2007DodgeCaliberAWDRearPremium Grade
2007JeepCompass4WDRearPremium Grade
2007JeepPatriot4WDRearPremium Grade

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

5105770AA512333BR930649HA590230

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
